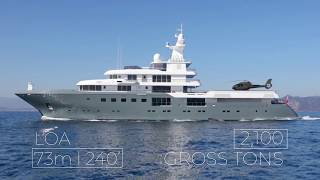

PLANET NINE 2018 240' 2" ADMIRAL YACHTS Motor Yacht

BASIC DETAILS

Name

PLANET NINE

Type

Long Range Motor Yacht

Builder

Admiral

Year

2018

Hull No

575

LOA

240’02”

73.2m

LWL

206’08”

63m

Beam Molded

42’00”

12.8m

Beam Waterline

41’03”

12.6m

Draft

11’10”

3.61m

Hull Material

Steel

Superstructure

Aluminum

Decks

Teak

Flag

Malta

Classification

+100A1, SSC YACHT (P) MONO G6 UMS +LMC ICE class 1D

LY2 compliance

MCA

Yes

Exterior Designer/Stylist

Tim Heywood

Interior Designer

Mlinaric, Henry and Zervudachi, London

Interior Joinery Builder

Fitz Interiors GmbH, Germany

Tank Tests

INSEAN, Rome

Main Engines

2 x Caterpillar 3516 1920 kw

Max Speed

16+ knots

Cruising Speed

14 knots

Range at Cruising Speed

6,000 nm

Stabilizers

Quantum Zero Speed

Gross Tonnage

2,100 GT

Lightship Displacement

1,486 tons

Guest Accommodations

16 Guests In 8 Staterooms

Crew Accommodation

22 Crew and Staff in 12 Cabins

GENERAL

Long range high quality luxury motor yacht with serious go anywhere sea keeping characteristics, heavy build specification and suitable for sailing in ice conditions in accordance with its class notation. Dynamic positioning and suitability for global cruising. Commercially approved helideck suitable for an Agusta Grande dimensionally or larger helicopter in weight, up to 8 tons, with enclosed below deck hangar.

With her massive volume (2,100 GT) from her nearly 13m (42’) beam, the interior of PLANET NINE offers not only spectacular space in all areas but her contemporary design by Zervudachi is light, modern and airy and the interior joinery, beautifully executed by the highly respected and well known known Fitz Interiors in Germany is to the very highest super yacht standards, similar to their execution of the interiors on such well known yachts as PELORUS, KOGO, TRIPLE SEVEN and SIREN.

KEY FEATURES

Commercial helipad (LY2 annex 6) max landing weight 8T (for Agusta Grande dimensionally but heavier) or Bell 429

Garage can accommodate an Agusta Grande or Bell 429

Helicopter Hangar with hydraulic lift

Deck/hangar facility designed to be capable of handling two helicopters (one in hangar, one on deck)

Helicopter refueling facility with storage for 9000 liters of fuel

Guest elevator serving Lower, Main, Upper, Wheelhouse and Sun Decks

Crew lift serving under lower deck, lower deck, main deck, upper deck

Dumb waiter serving upper deck, wheelhouse deck and sun deck

Pool/Jacuzzi on sun deck with water retention tank

32 foot centre console Rupert RIB tender stored on main aft deck

32 foot cabin RIB Rupert Limousine tender stored on main aft deck

6m Rupert service and crew RIB stored in lower deck garage, port side

All Rupert tenders powered by Volvo stern drive engines with duo prop. 35-40knts

5m Rescue boat stored on the foredeck

Schottel pump jet stern thruster in the aft ship with 360 degree propulsion

Schottel bow thruster

HUG soot filtration/after burner for all generators leading to mast dry stack

Navis Dynamic positioning

Cramm telescopic foremast

LED lighting with scene control via iPad

Extensive high quality audio video system

High specification of Navigation and communication equipment including full paperless charting

 ACCOMMODATIONS

GUEST ACCOMMODATIONS:

16 Guests In 8 Staterooms

Owner (2 persons) in 1 Master Suite

Guests (2 persons) in one VIP suite on main deck

Guests (6 persons) in 3 King VIP Staterooms

Guests (6 persons) in 3 King Guest Staterooms

CREW ACCOMMODATIONS:

1 Captain’s Cabin (1 person)

1 Officer’s Cabin (2 persons)

1 Chief Engineer’s Cabin (2 persons)

7 Crew Cabins (14 persons)

1 Staff Cabins (2 persons)

1 Heli Cabin (1 person)

SUN DECK:

Sun deck with elevator access, day head and jacuzzi pool.

WHEELHOUSE DECK:

Wheelhouse, office, crew day head, AV/rack room, Captain’s cabin, heli ops office and accommodation, VIP cabin with double berth and private aft facing terrace.

UPPER DECK:

Access to the forward main deck cinema/theatre room, forward observatory lounge with full seated views ahead and deck access, study/lounge area, lobby area with deck access and day head, main galley and pantry, aft indoor/outdoor dining saloon with bar and wide opening doors aft and to the sides, large aft deck with tables and sofas leading to the expansive helideck.

MAIN DECK:

Principally dedicated as the owner’s deck with large office/study/lounge/dining room, second bedroom or VIP suite with office/dressing room in the forward part, central lobby with deck access and day head, aft main Owners suite with lobby, bathroom, dressing room and bedroom including access to the deck on the starboard side. The main tenders are stowed in the aft part either side of the helicopter hangar with two day heads aft of this and a ‘podium’ deck with seating and view at the stern.

LOWER DECK:

Crew accommodation forward including a crew galley, mess and cabins, the guest accommodation in the aft part consists of a port side ‘sea lobby’ with direct access to the water, double staff cabin with separate office, VIP cabin with lounge that can be converted to a further king guest cabin and three further king sized guest cabins. In the after part there is a crew and water sports garage to port and a beach club/spa area with steam room and showers to starboard, both with large opening hatches leading to the sea. Aft there is a reception room and beach club with large opening transom door leading to the aft swimming platform.

UNDER LOWER DECK:

Extensive cold, freezer rooms and cooled storage, baggage store, washing room, laundry room, staff cabin with twin berths, crew gym, crew lounge in the forward part. The after part is split into the engine room, generator room, control room and switchboard, machinery room.

CONSTRUCTION

Hull

Steel

First Two Tiers of Superstructure

Steel

Wheelhouse Deck Superstructure

Aluminum

Sun Deck

Aluminum

Mast

Aluminum

Decks

Teak except helideck

Paint

Boero

CAPACITIES

Tonnage

   2,100 gross tons;

1,486 lightship displacement tons

Fuel Capacity

64,854 US Gallons

(245,500 Liters)

Water Capacity

10,567 US Gallons

(40,000 Liters)

Watermakers

10,567 US Gallons p/d

(40,000  Liters p/d)

Black/Grey Water

6,340 US Gallons

(24,000 Liters)

Helicopter Fuel

2,378 US Gallons

(9,000 Liters)

Maximum

16+ kts

Cruising

14 kts

BUILD NOISE LIMITS

Cruising Speed:

Zone

Noise Limit Levels

Owner’s Stateroom

50 dB (A)

Owner’s Lounge

48 dB (A)

VIP, Guests Staterooms on Lower Deck Aft & Center

56 dB (A)

VIP, Guests Staterooms on Lower Deck Forward

55 dB (A)

VIP Stateroom on Wheelhouse Deck

50 dB (A)

Crew Cabins

55 dB (A)

Theatre on Main Deck

50 dB (A)

Wheelhouse

49 dB (A)

Captain’s Cabin

49 dB (A)

Upper Salon-Lounge-Observatory Lounge

49 dB (A)

Owner’s Lounge, Lower Deck

62 dB (A)

Crew Lounge

55 dB (A)

At Anchor:

Zone

Noise Limit Levels

Owner’s Stateroom

45 dB (A)

Owner’s Lounge

45 dB (A)

VIP, Guests Staterooms on Lower Deck Aft & Center

49 dB (A)

VIP, Guests Staterooms on Lower Deck Forward

49 dB (A)

VIP Stateroom on Wheelhouse Deck

47 dB (A)

Crew Cabins

49 dB (A)

Theatre on Main Deck

47 dB (A)

Wheelhouse

46 dB (A)

Captain’s Cabin

46 dB (A)

Upper Salon-Lounge-Observatory Lounge

46 dB (A)

Owner’s Lounge, Lower Deck

49 dB (A)

Crew Lounge

49 dB (A)

MAIN MACHINERY

Main Engines

2 x Caterpillar 3516 1920 kw

Engine Hours

Port: 11,000 Stbd.: 11,000 (June 2023)

Reduction Gears

ZF

Propellers

Otto Piening

Rudders

Rolls Royce

Silencer

Co.Fe.Me

Generators

3 x Caterpillar C18 280 Kw, tier II. HUG convertors on 3 gens.

Generator 1 Hours

Port: 13,000 (June 2023)

Generator 2 Hours

Center: 13,000 (June 2023)

Generator 3 Hours

Stbd.: 13,000 (June 2023)

Emergency Generator Hours

14 (November 2018)

Shore Power Supply

Eekels

Electricity

400V 3 phase 50hz and 230V single phase 50hz.

Batteries

Exide-Tudor

Battery Charger

Mastervolt

Elevator

Otis

ANCILLARY MACHINERY

Air Conditioning

Finservices and Condaria Fan Coils

Air Compressor

R.e.n.a.t.

Bow Thruster

Shottel

Water Heaters and Hydrophore

Nuova Sorema

Fresh Water Makers

Idromar 2 x 20,000 liters per day each

Sand Filter

Idromar

Fuel Pump

Garbarino

Fuel Oil Purifier

Westfalia

Engine Room Ventilation

Gianneschi Pump

Mist Eliminator Grid

Fiet

Duplex Filter

Westfalia

Oily Water Separator

Westfalia

Oil Pumps

Garbarino

Bilge Water Separator

DVZ

Bilge/Fire Pump

Garbarino

Soot Filter/Catalytic Converter

Hug

Sewage Treatment System

Hamann

Black Water Treatment

Hamann

Toilet System

Jets

Fin Stabilizers

Quantum Zero Speed

Steering System

Rolls Royce

Under Water Lights

UL Ti Mate 75 SA Ice

Vacuum System

Jets

Deck MACHINERY & EQUIPMENT

Anchors

Posidonia

Anchor Chains

Posidonia

Anchor Windlass System

Officine Navali Nanni

Mooring Capstans

Officine Navali Nanni

Boat Crane

Hydromar/Cramm

Travel Crane

Hydromar/Cramm

Davits

Hydromar/Cramm

Passarelle

Hydromar/Cramm

Heli Lift

Hydromar/Cramm

Shell and Deck Doors

Hydromar/Cramm

Search Light

Carlisle and Finch

Navigation Light

Lopo Light

Jacuzzi

Yes

Portholes

Wigo

Window Wipers

Speich

Cathodic Protection

Cathelco

Watertight Doors

Tebul

External Doors

SCM Inox

Paint Exterior

Boero

Paint Interior

Boero

Paint Underwater

Boero

SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT

Security Equipment

CCTV

Panasonic

Cameras

20 x Axis cameras covering garages, engine rooms, heli hangar, entrances and decks

Monitors

5 x Hatteland 23 inch

Ship’s Safes

x 4

Fire Fighting Equipment

Fire Control System

Autronica

Fire Detection

Autronica

Water Mist System

Ultrafog

Engine Room Fire Fighting System

Ultrafog

Fire Extinguishers

Portable

Alarms

Pergola

Safety Equipment

Life Rafts

Zodiac 6 x 20 person

Life Jackets

50 minimum

Ring Buoys

x 8

Horn

Kahlenberg

EPIRBS

2 x Sea Safe

Flares

TBD according to class

ENTERTAINMENT & A/V EQUIPMENT

A brief overview of the entertainment and A/V systems onboard PLANET NINE is as follows. As an Apple based system developed, engineered and installed by Dutch based Mr. Smith AV company, the LAVIE system is user friendly and controlled from I-Pads, I-Phone or I-Watch to not only play preferred entertainment but to control the entire onboard environment. From easy movie selection to television, satellite TV, best digital audio, lights and blinds control, the LAVIE system is simple to operate and since it is designed on the Apple base, easy to trouble shoot and repair anywhere in the world.

Some of the basic key features for LAVIE onboard PLANET NINE are: Apple iWatch remote, 4k video supported, iPad remote, iPhone remote, Apple Airplay, Google Chromecast, central stream server, automatic drop & rip station, web based content manager, streaming satellite live TV, public playlist/party mode, KNX integration, AC integration, easy to use, digital audio, free app upgrades, future proof, world wide support, Apple hardware, YouTube integrated, CCTV integration, Kartina TV integrated, navigation screens integrated, steward call, and interactive message boards for menu’s/drinks/activities.

NAVIGATION SYSTEMS & COMMUNICATIONS SYSTEMS

Communication Systems

SATcoms

1 x Vsat Intellian V100 (Ku/Ka ready)

Furuno Fleet FB 200

Thrane and Thrane Iridium SC 4000

Telephone System

Wired for PBX, full GSM booster system

Vessel Watch Intelligent crew radio system

SSB

Furuno FS1575 (150w)

Furuno 2572 (250w) with radio telex

VHF Fixed

Furuno

Cellular Phone System

GSM Repeater Netherlands

Intercom

Vingtor

Internal Ship’s Communication

PABX wired only

Navigation Systems

Dynamic Positioning System

Navis

Radar

Furuno X Band 12kw

Furuno S Band 30kw

Gyrocompass

Sperry Marine

Magnetic Compass

Yes

Auto Pilot

Sperry Marine

Depth Sounder

Furuno

GPS

Furuno

Weather FAX

Furuno

Wind Indicator Station

Furuno

Speed Indicator

Furuno

Navtex

Furuno

AIS

Furuno

Installation

Furuno Italy/Bonning

GALLEY & LAUNDRY EQUIPMENT

Domestic Appliances

Miele

Bosch

Cooking Equipment

Miele 90cm convection oven, Miele 60cm steam oven, Miele deep fryer, Miele griddle, 2 x Bosch induction stove top hobs, Miele salamander,

Refrigeration/Freezer

Foster in galley, massive walk in cold rooms on lower deck

Dishwasher

Miele

General Galley

Eurocave wine coolers

Crew Galley/Mess Equipment

Cooking Equipment

Miele microwave etc.

Main Laundry Equipment

4 x Miele Marine washers

4 x Miele Marine dryers

TENDERS & TOYS

Tenders

32’ (9.72m) center console Rupert RIB

32’ (9.72m) Limousine Rupert RIB

6m (19’09”) Rupert Service and Crew RIB

(All Rupert tenders powered by Volvo stern drive engines with dual prop. (35-40 knots)

5m (16’05”) Rescue Boat

DISCLAIMER

All speeds, measurements, capacities, consumptions, etc. may be approximate or estimated.  Specifications provided for information only.  Data was obtained from sources believed to be reliable and is not guaranteed by owner or brokers.  Buyer assumes the responsibility to ascertain the correctness of all data contained herein and otherwise provided and must instruct his agent and surveyors to confirm all details for accuracy prior to purchase. Subject to prior sale price and inventory change or withdrawal from market without notice.
