2009
Year
TRINITY
Builder
191' (58.22m)
Length
6
Cabins

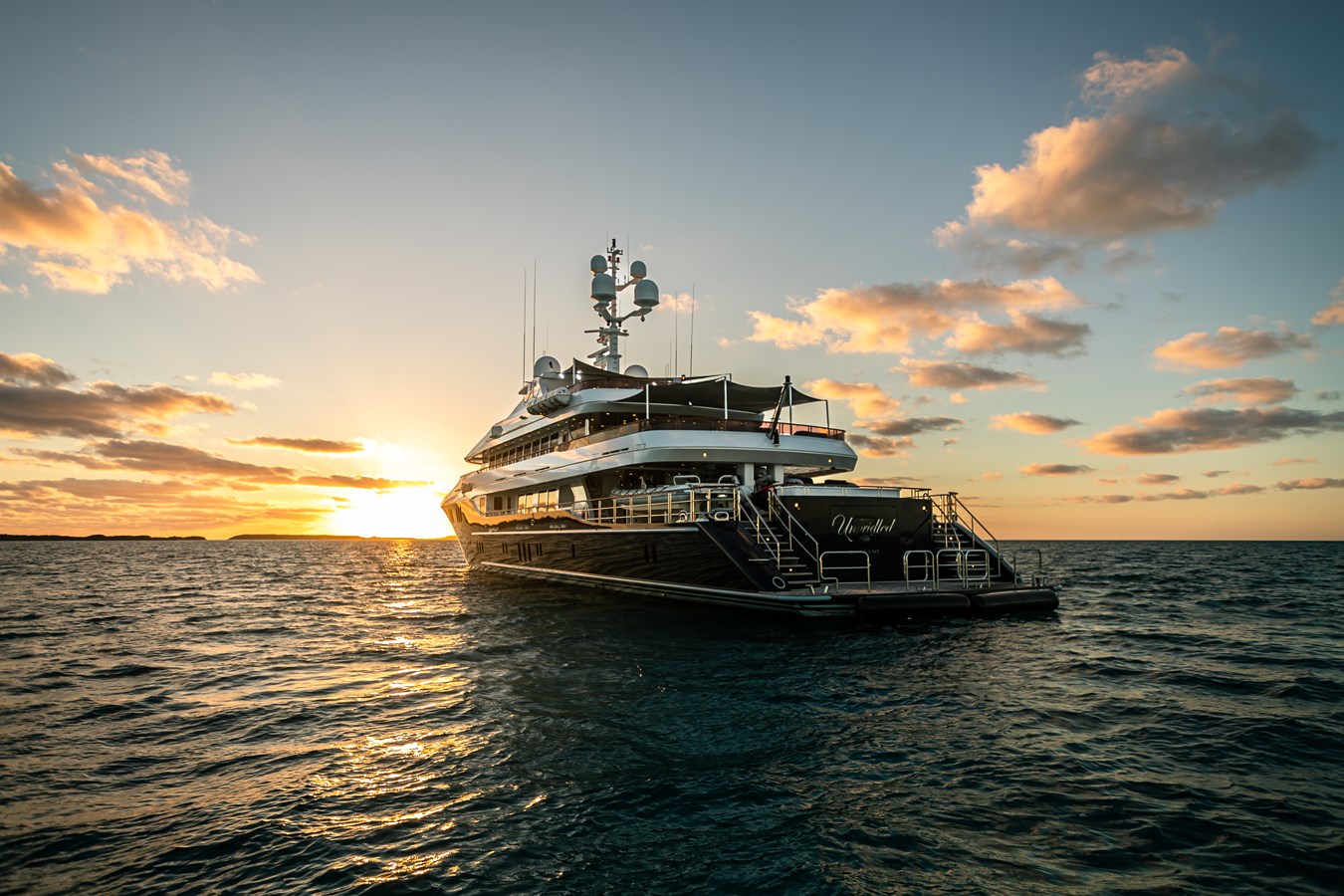

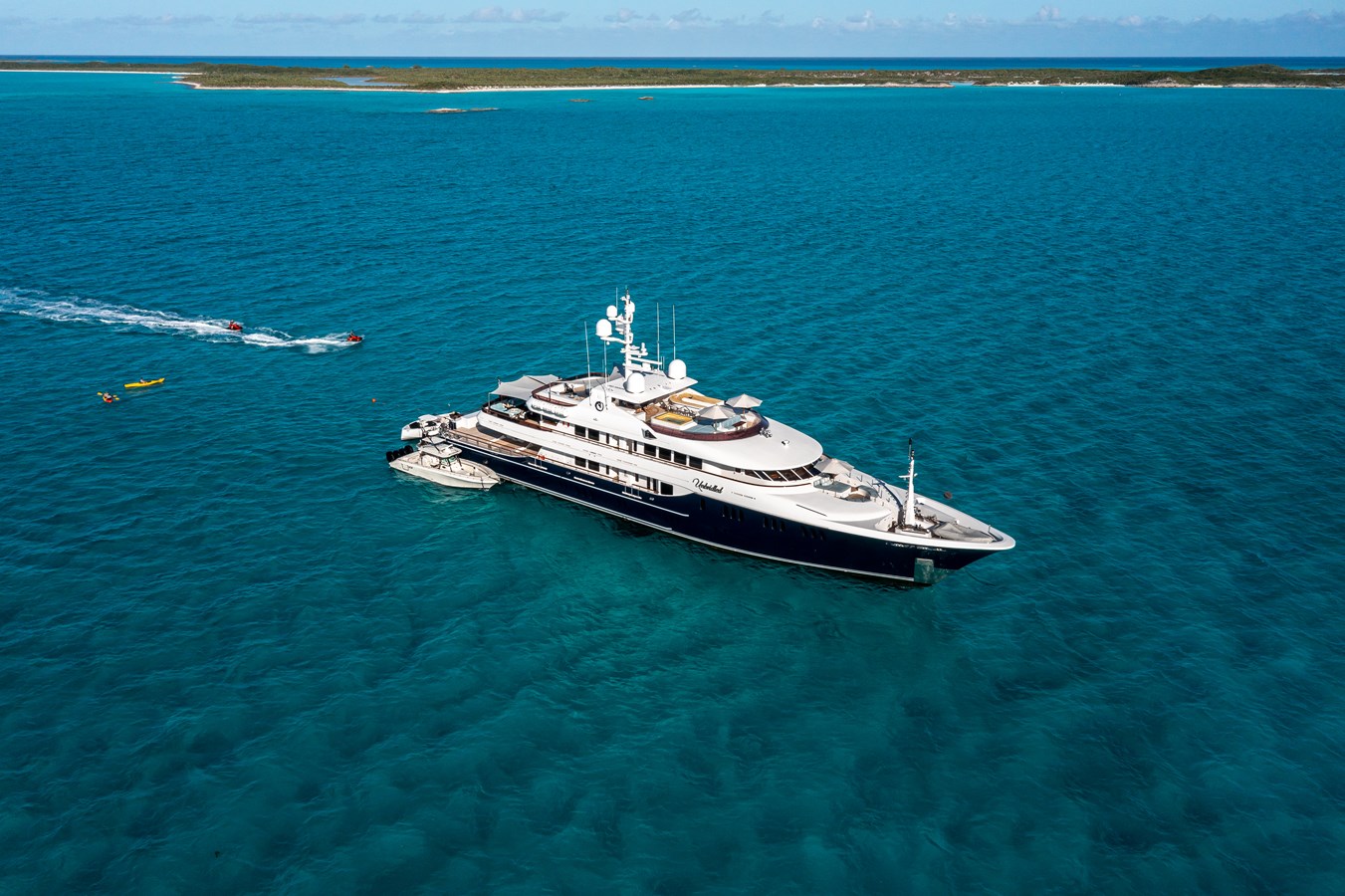

UNBRIDLED 2009 191' TRINITY Motor Yacht

Dania Beach United States $24,950,000 USD


The 2009 191' TRINITY Motor Yacht UNBRIDLED is a yacht for sale located in Dania Beach, Florida, United States.

Contact the yacht broker to receive more information or schedule a showing of this 2009 191' TRINITY Motor Yacht UNBRIDLED yacht for sale in Dania Beach, Florida, USA today!

Get more information on this listing

LENGTH 191' (58.22m)
BUILDER TRINITY
ASKING PRICE $24,950,000 USD
BUILT (REFIT) 2009 (2019)
BEAM 35' 9" (10.9m)
DRAFT N/A
MAX SPEED 16 Knots
CRUISING SPEED 13.5 Knots
CABINS 6
GROSS TONNAGE 803.00
DISPLACEMENT N/A
LOCATION Dania Beach, Florida, USA
Get more information on this listing

Full Specifications


Additional specifications are available for this listing. Click below to get detailed information.

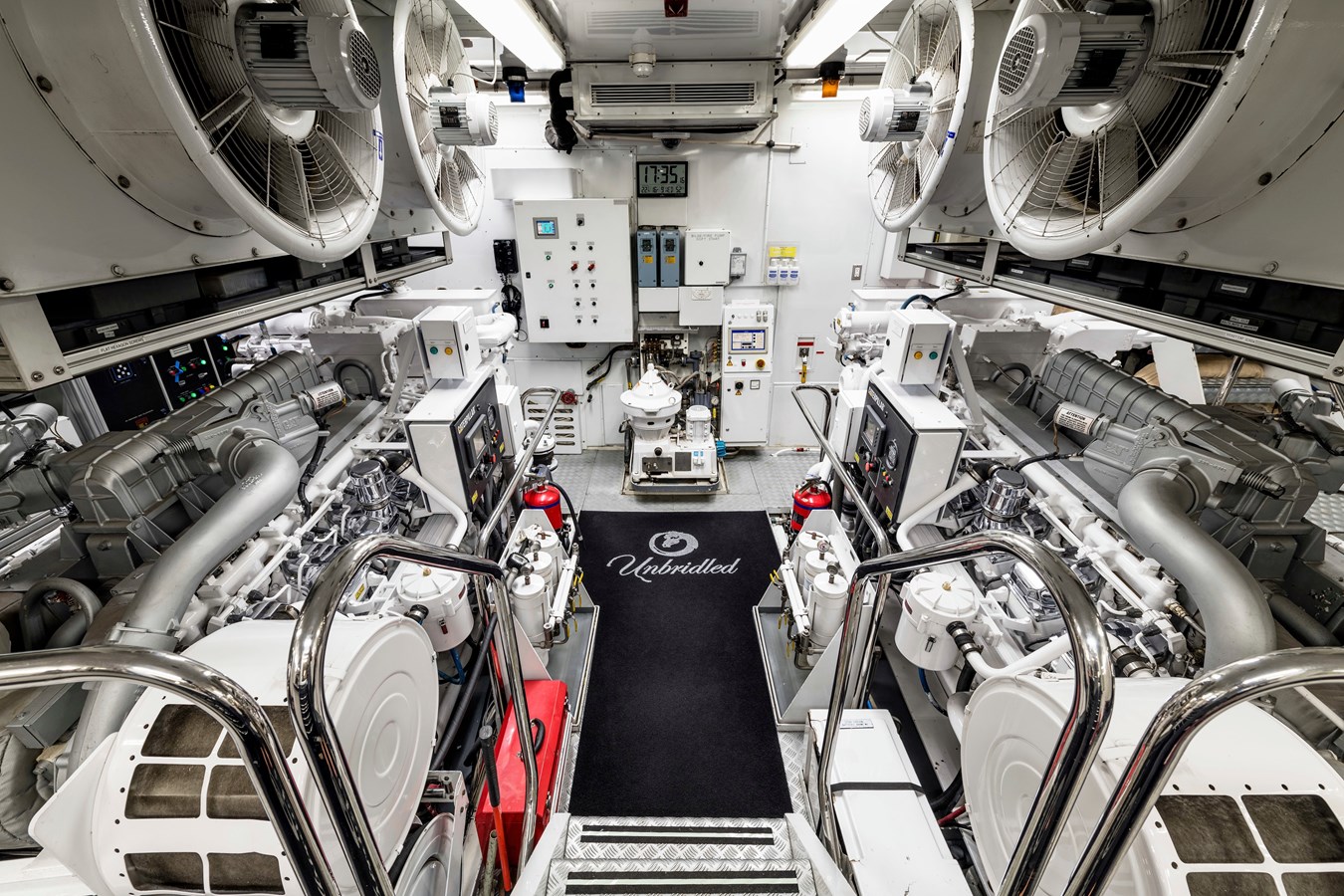

MAIN ENGINES

MAIN ENGINES2 x Caterpillar, 3512B 1509kW (2,012hp)
ENGINE HOURSOctober 2022
Port: 14,813 hours
Stbd: 14,771 hours
GEAR BOXES2 x Reintjes WAF 743 K31 (Gear Ratio 3.52:1)
SHAFTS & PROPELLERS6 inch Aqualoy HS-22 with Michigan Wheel 5 blade
SPEEDSMaximum speed16 knots
Cruising speed13.5 knots
Economical speed12 knots
FUEL CONSUMPTIONS882 Liters/hour at 16 knots
340 Liters/hour at 13.5 knots
241 Liters/hour at 12 knots
RANGE5,932 nm at 12 knots

AUXILIARY MACHINERY & ELECTRICAL SYSTEM

GENERATORS2 x 230kW Kilo Pak
EMERGENCY GENERATOR1 x 99kW Kilo Pak
GENERATOR HOURSOctober 2022
Port: 26,106 hours (full service @ 9,874 hrs)
Stbd: 24,076 hours (full service @ 9,6781 hrs)
Emergency Gen: 417 hours
ELECTRICITY480V and 110V, 60hz
SHORE POWER2 x ASEA AC1003 Power Converters
BATTERIESMain Engine and Generators CAT 24VDC

TANK CAPACITIES (approximate)

FUEL128,690 Liters (48,645 Gallons)
WATER22,710 Liters (6,000 Gallons)
WATERMAKERS2 x FCI 4000 US gallon per day each
LUB OIL1,892 Liters (500 Gallons)
DIRTY LUB OIL3,685 Liters (975 Gallons)
GREY WATER11,994 Liters (3,160 Gallons)
BLACK WATER2,181 Liters (577 Gallons)

ANCILLARY EQUIPMENT

STEERING SYSTEMEMI, Proportional Electro-Hydraulic Steering System
RUDDER ANGLE INDICATORAnschutz
BOW THRUSTERQuantum QT-200 Hp
STERN THRUSTERQuantum QT-75 Hp
STABILIZERS2 x Quantum active fin with digital controls
FUEL FILTERSCAT & Racor Parker
FUEL SEPERATORAlfa Laval P100
OIL/WATER SEPARATORMahle NFV MPEB-VT
FIRE/BILGE PUMP2 x Grundfo 7.5 Hp
BOILERSRheem RUUD Electric Water Heater x 4, each 99 gallons
SEWAGE TREATMENTHeadhunter Tidal Wave
WC'sHeadhunter
AIRCON DITIONING2 x Blitzer 444000 btu/hr compressors, 45 kW heating
VENTILATIONMarine Air 5 stage 75 ton, 60kW heating

SAFETY & SECURITY EQUIPMENT

FIRE FIGHTINGConsillium Salwico CS4000
ALARMSMX 4000
SECURITYCCTV

COMMUNICATION EQUIPMENT GMDSS EQUIPPED & CERTIFIED

SATCOM1 x V-Sat – Seatel FB250
1 x V-Sat – Seatel FB500
SSB RADIOTELEPHONEFuruno FS 1570
CELLULAR SYSTEMTellular SX7t GSM
VHF RADIOTELEPHONES2 x Furuno 8800 D
3 x Simrad
TELEPHONE EXCHANGEPanasonic TDX 200
INTERCOM SYSTEMRaymarine
WATCHKEEPING RECIEVERSat C GMDSS Alarm Panel

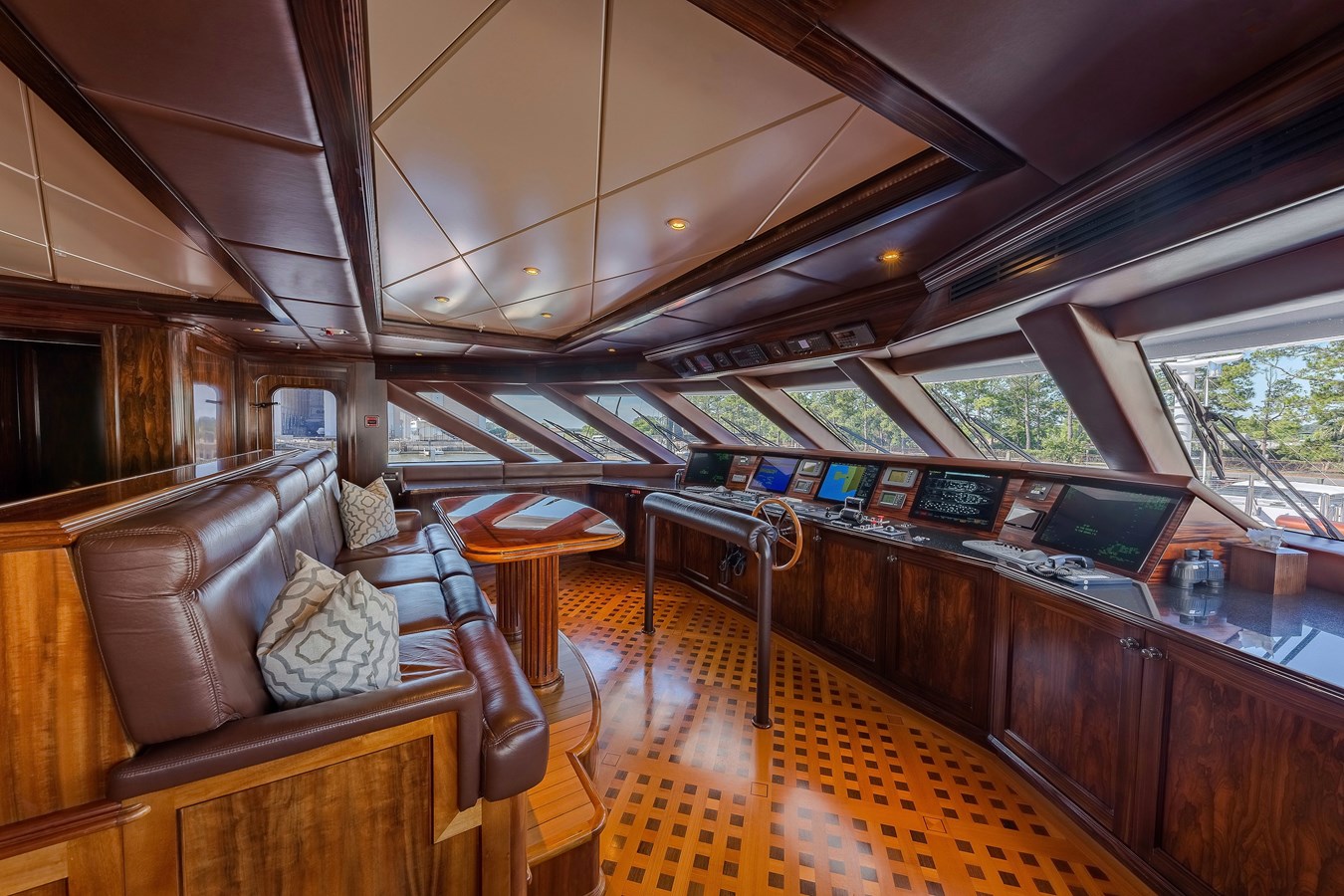

NAVIGATION EQUIPMENT

MAGNETIC COMPASSAnschutz
GYRO COMPASSGyrostar 22, Anschutz
AUTOMATIC PILOTPilostar D, Anschutz
LOGB&G and Consillium
ECHO SOUNDERFuruno FCV 1200
RADAR1 x X Band Furuno
1 x S Band Furuno
CHART PLOTTER2 x Transas Ecdis
GPS2 x Veica MX 420 DGPS
1 x Simrad MX612 DGPS
NAVTEXFuruno NX-700
WIND INSTRUMENTSB&G 3000
OTHER2 x FLIR Thermal Imaging Camera

DECK EQUIPMENT

ANCHOR WINDLASSMuir
AFT WARPING CAPSTANSMuir
GROUND TACKLE2x Stockless anchors – 580kg each
BOAT CRANE & DAVITSNautical Structures
PASSERELLEMarquipt
SIDE BOARDING LADDERS2 x Marquipt manual ladders
SEARCHLIGHTARC 600
AWNING4x Sun Awnings

AUDIO/VISUAL ENTERTAINMENT SYSTEMS

MAIN SALON1 x Media Décor Motorized Art Frames
4 x B&W CCM80 speakers
1 x B&W FPM5 Vented Box Systems
1 x Arcam AVR280BLK Receiver
1 x Crestron CP2E Control Processor
1 x Crestron TPMC8X Touch panel
1 x Crestron TPMC8XDSW Docking Station
1 x iPad Crestron AV App
2 x Sunfire Subwoofers
1 x Crestron Room Media Controller
1 x CNXRMCLV Control System
1 x Zantech CB18 Phoenix Connector
3 x Crestron Light Switch Keypad
DINING ROOM2 x B&W Ceiling Speakers
1 x Crestron Touch panel
3 x Crestron Light Switch Keypad
1 x Crestron Docking Station
1 x iPad Crestron AV App
1 x Auxiliary Port
FOYER1 x B&W Speakers
2 x Linn Sweetspot Speakers
1 x Crestron Touch panel
2 x Crestron Keypad
GYM1 x B&W Ceiling Speakers
1 x NAD DVD Player
1 x Sherbourn Amplifier
1 x Sunfire Subwoofer
1 x Crestron Docking Station
4 x Crestron Keypads
1 x B&W Ceiling Speaker
1 x Crestron Keypad (Bathroom)
HIS OFFICE1 x 42 inch NEC Plasma
2 x B&W Speakers
1 x Sherbourn Amplifier
1 x Sunfire Subwoofer
1 x Crestron Touch panel
1 x iPad – Crestron AV App
3 x Crestron Light Switch Keypad
HER OFFICE2 x B&W Speakers
1 x Sherbourn Amplifier
1 x Sunfire Subwoofer (1)iPad – Crestron AV App
MASTER STATEROOM1 x Auxiliary Ports
4 x B&W Speakers
1 x B&W Ceiling Speaker (Bathroom)
4 x Sonace Symphony
1 x 20 inch Sharp Monitor
1 x iPad Mini Crestron Av App
4 x Crestron Light Switch Keypad
PILOT HOUSE2 x B&W CCM65 Ceiling Speakers
1 x Sherbourn LDS2/75 Amplifier
1 x VST Receiver
5 x Crestron Light Switch Keypads
2 x Crestron Touch panels
1 x Sonace Table Top iPod
1 x Auxiliary Ports
SKYLOUNGE1 x Media Décor Motorized Art Frames
2 x Sunfire Subwoofers
4 x Crestron Light Switch Keypads
1 x Cisco Wireless Access Point
1 x Auxiliary Ports
1 x iPad Crestron AV App
1 x iPad Mini Crestron AV App
GUEST STUDY1 x Crestron Processor
1 x NAD DVD Player
1 x Sunfire Subwoofer
1 x Crestron Light Switch Keypad
1 x 42 inch NEC Plasma
3 x Quantum LCR Speakers
1 x iPad Crestron AV App
1 x iPad Docking Station
VIP GUEST PORT1 x 32 inch NEC Plasma
1 x Crestron Light Switch Keypad
1 x iPad Crestron AV App
1 x iPad Docking Station
1 x Linn Sweetspot Speakers
1 x NAD DVD Player
VIP GUEST STARBOARD1 x 32 inch NEC Plasma
1 x Crestron Light Switch Keypad
1 x iPad Crestron AV App
1 x iPad Docking Station
1 x Linn Sweetspot Speakers
1 x NAD DVD Player
GUEST TWIN PORT1 x 32 inch NEC Plasma
1 x NAD DVD Player
1 x iPad Crestron AV App
1 x iPad Docking Station
1 x Sherbourn Amplifier
2 x Speakercraft Flush Mount Speakers
GUEST TWIN STARBOARD1 x 32 inch NEC Plasma
1 x NAD DVD Player
1 x iPad Crestron AV App
1 x iPad Docking Station
1 x Sherbourn Amplifier
1 x Speakercraft Flush Mount Speakers
LOWER HALL2 x Speakercraft (1) NAD DVD Player
4 x Crestron Light Switch Keypads
2 x Speakercraft Flush Mounted Speakers
GALLEY2 x B&W Speakers
2 x Crestron Light Switch Keypads
1 x VST Car Stereo
1 x 20 inch Sharp LCD Monitor
1 x Crestron Touch Panel
CREW LOUNGE1 x Crestron Processor
1 x NAD DVD Player
1 x Velodyne Subwoofer
5 x Speakercraft Speakers
1 x iPad – Crestron AV App
1 x iPad Docking Station
1 x 32 inch Runco Monitor
1 x Cisco Wireless Access Point
CAPTAIN’S CABIN1 x NAD DVD Player
2 x Speakercraft Speakers
1 x Crestron Touch Panel
1 x Crestron Docking Station
1 x Crestron Light Switch Keypad
1 x Liberty Panel Crafters Custom Decora Style Insert
1 x 32 inch LCD Monitor
CREW CABINS (4)1 x Info Display Integration TV/DVD System per berth
2 x Speakercraft 6 inch Round Speakers
1 x VST receiver
1 x VST DVD Player
2 x VST Wireless Headphones
1 x AV Toolbox Amp
1 x Liberty Panel Crafters Custom Decora Style Insert
LAZARETTE/DIVE ROOM1x JL Audio Marine Subwoofers
4 x JL Audio Marine Speakers
1 x Creston Waterproof Handheld Remote
1 x Crestron Wall Mount Touch panel
1 x Crestron Touch panel
SUNDECK1 x Crestron Touch panel
1 x Crestron Docking Station
1 x Crestron Waterproof Handheld Remote
1 x JL Audio Speakers
1 x Runco 42 inch Monitor
1 x iPad – Crestron AV App
UPPER DECK AFT1 x Crestron Touchscreen
1 x Crestron Keypads
1 x Crestron Touch panel
1 x 2 Way RF Receivers
4 x JL Audio Marine Speakers
6 x JL Audio Speakers
2 x JL Audio Subwoofers
1 x Cisco Wireless Access Point
PORTUGESE BRIDGE1 x JL Audio Marine Subwoofers
4 x JL Audio Marine Speakers

OFFICE EQUIPMENT

COMPUTERS1 x Mini mac with 27 inch monitor
1 x OptiPlex 760 PC with HP2195 monitors
1 x Apple PC with pair of apple monitors
PHOTOCOPIER/PRINTERCannon MX 7600 (all in one)
3 x HP Office Jet Pro 8600 Pro Plus (all in one)

DOMESTIC EQUIPMENT

MAIN GALLEY2 x Gaggenau Electric Ovens
1 x Gaggenau Hot Plate
1 x Kitchen Aid Ice Machine
1 x Vulcan Electric Salamander
1 x Electrolux Dishwasher

1 x Sharp Microwave
1 x Keurig Machine
1 x Nespresso Machine
LAUNDRY3 x Miele Touchtronic T 1415 Dryers
3 x Miele Touchtronic W1215 Washers

OTHER EQUIPMENT

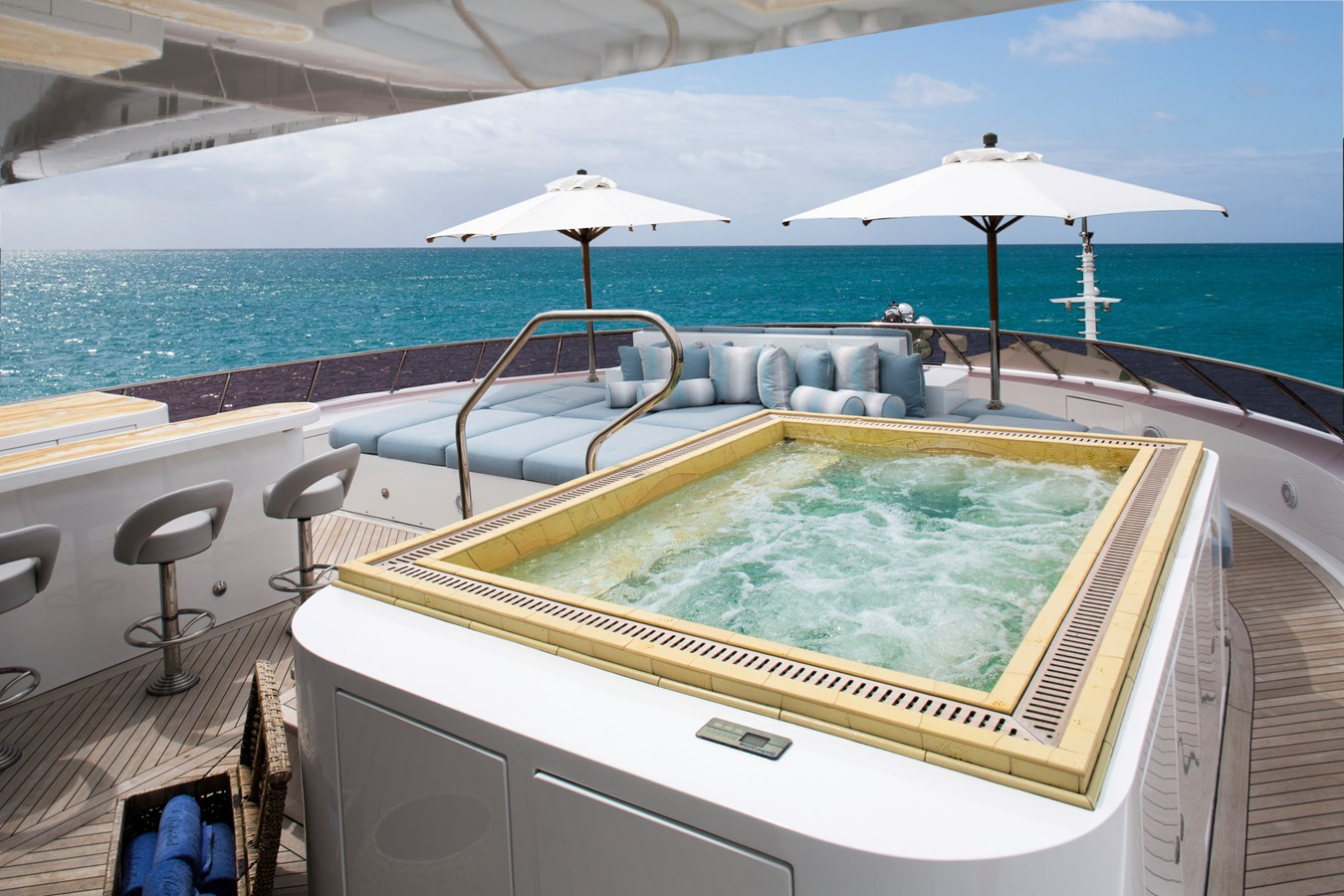

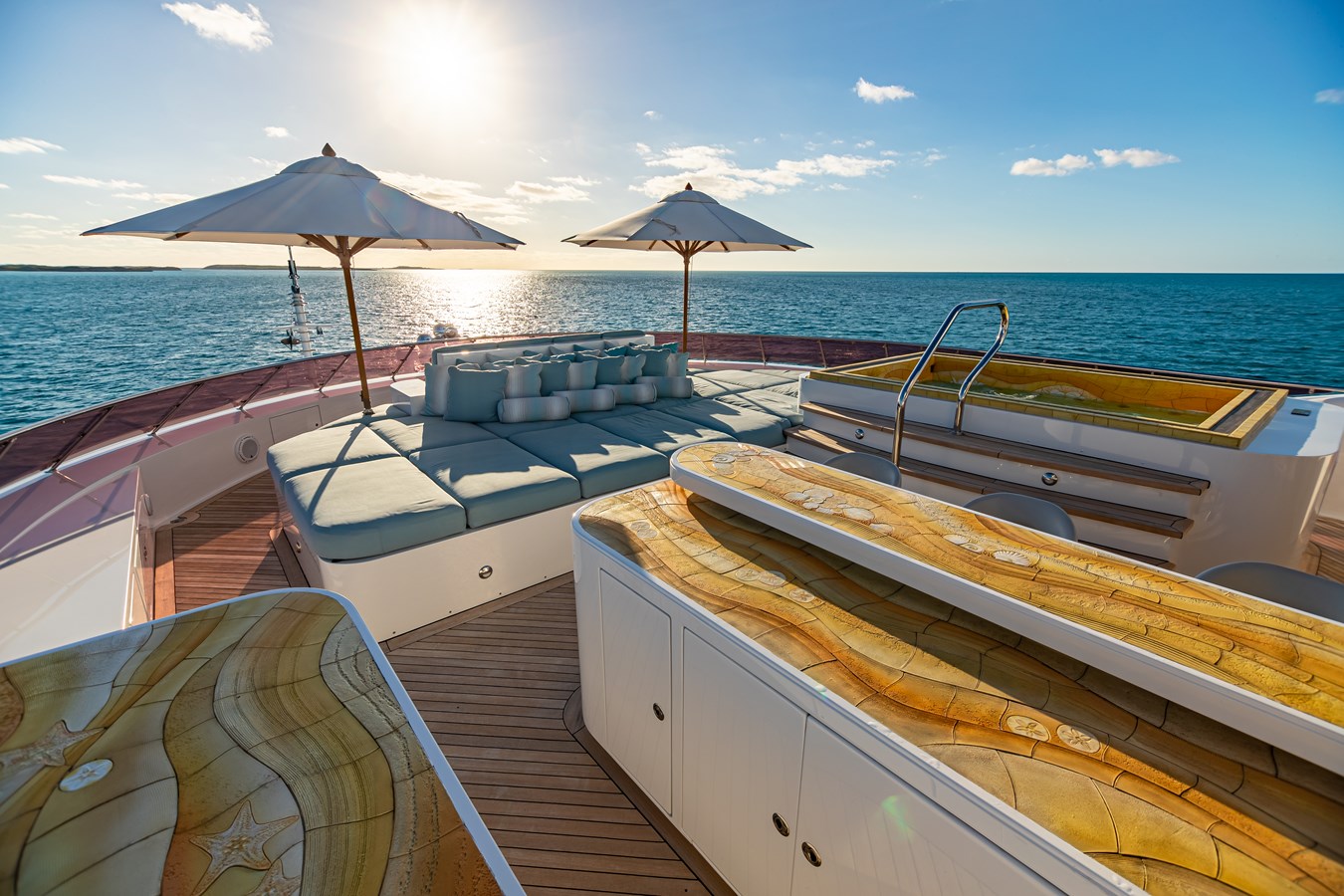

JACUZZI DIP POOLBradfords Custom Tile 8 Person
SHIP'S SAFES1x Master Cabin Hayman Electronic
1 x Challenger Electronic
1 x Captain Cabin Dial Lock
BARBEQUEViking Professional 2burner BBQ
GYM EQUIPMENT1 x Woodway Treadmill
1 x Cybex Elliptical Trainer
1 x Bowflex bench + Free weights
1 x Les Mills V-BK Exercise Bike

TENDERS & WATERSPORTS EQUIPMENT

TENDERS42’ HCB with 4 engines
32’ Vanquish Tender
28’ Zodiak Hurricane H853 Tender
WATERSPORTS2x Kayaks
Canoe
3x Stand-up paddle boards
2x SEADOO jet skies
3x Sea Bobs
Snorkel gear
Fishing equipment
Variety of Water toys
Beach setups with BBQ

ACCOMMODATION

Accommodation for up to 16 guests in six adaptable cabins, and up to 14 crew in six
crew cabins, as follows:

OWNERFull beam owner’s suite, located forward on the main deck with en suite. Private study located aft of cabin

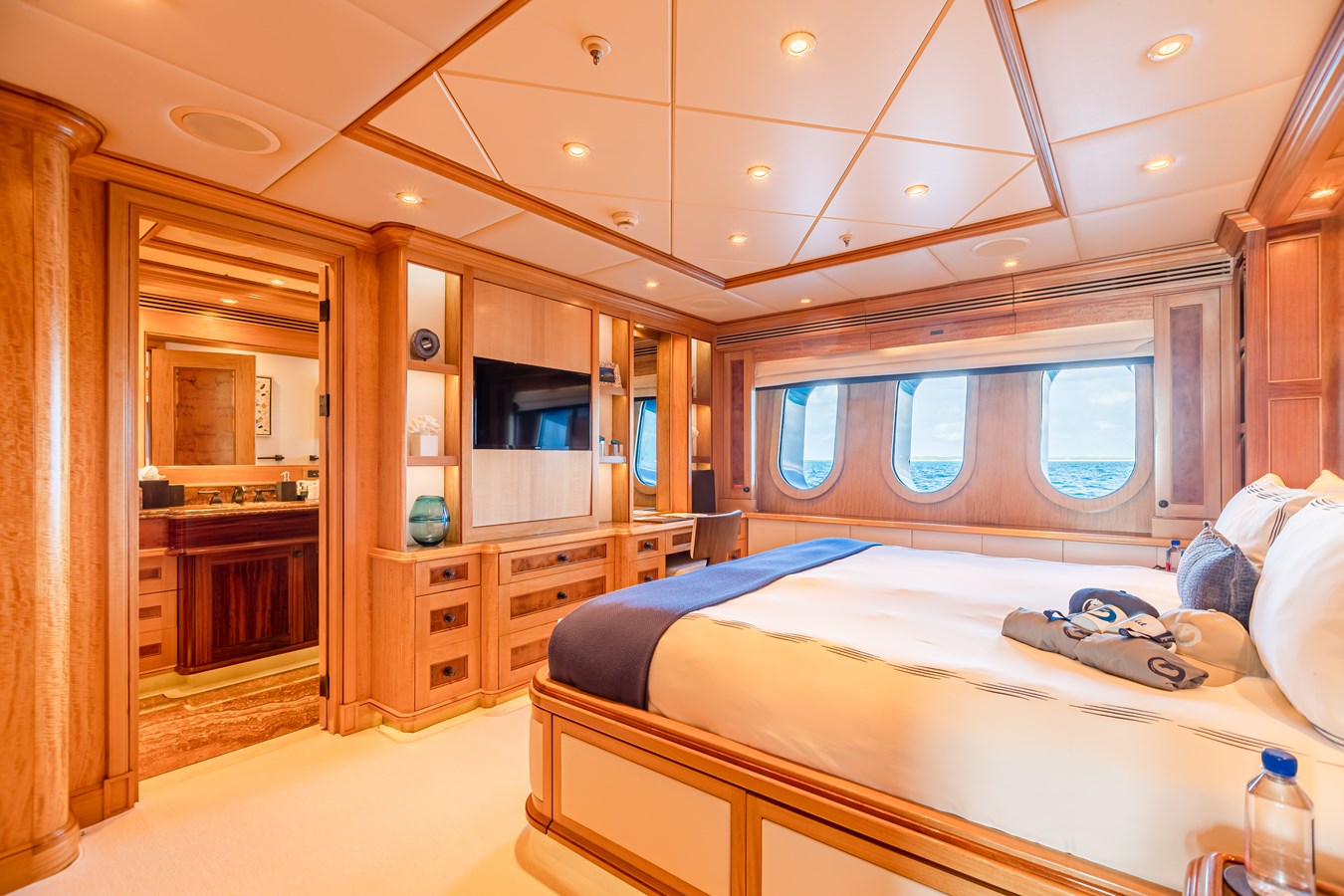

GUESTS2 x Double VIP cabins with queen bed and en suite bathroom located on lower deck.

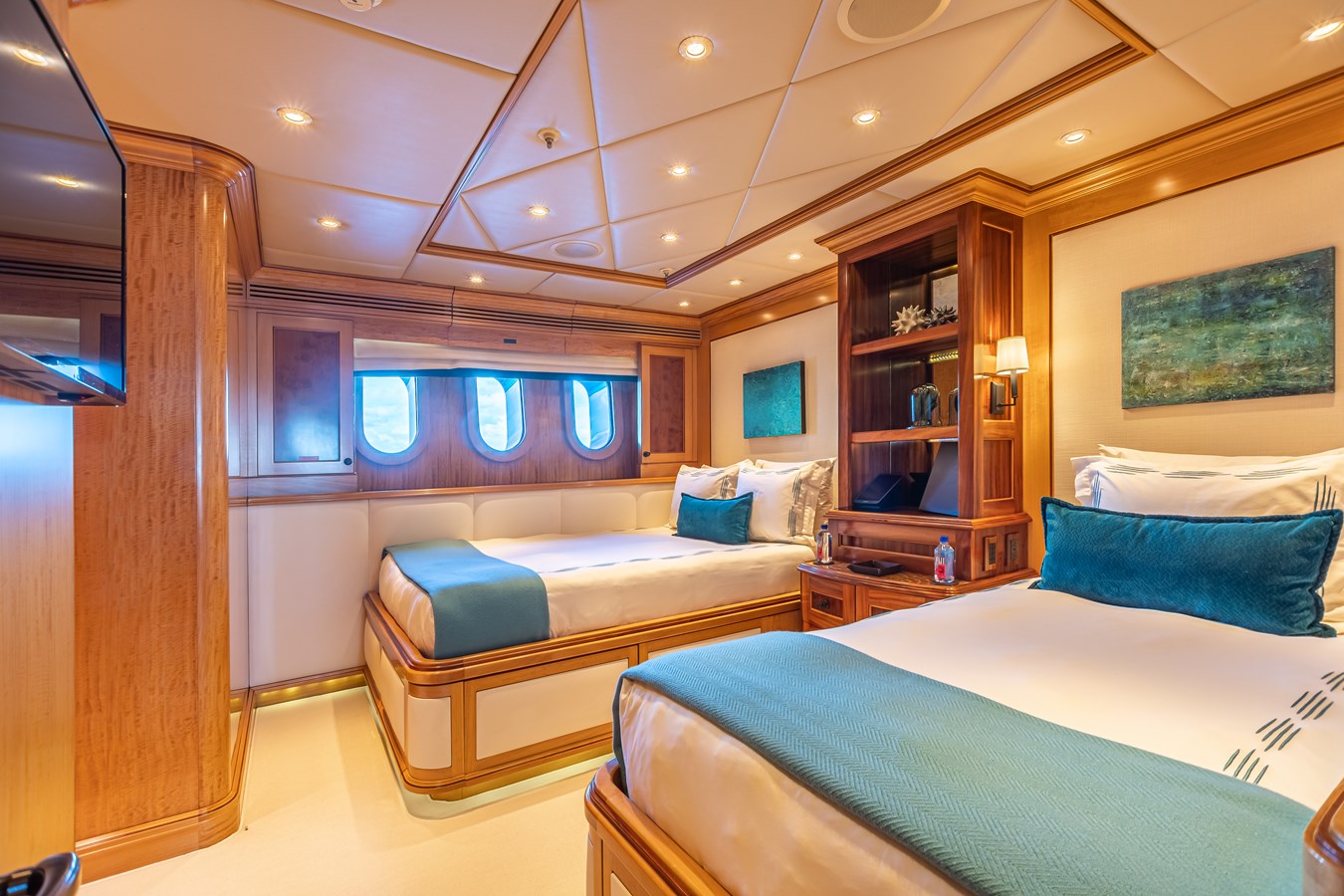

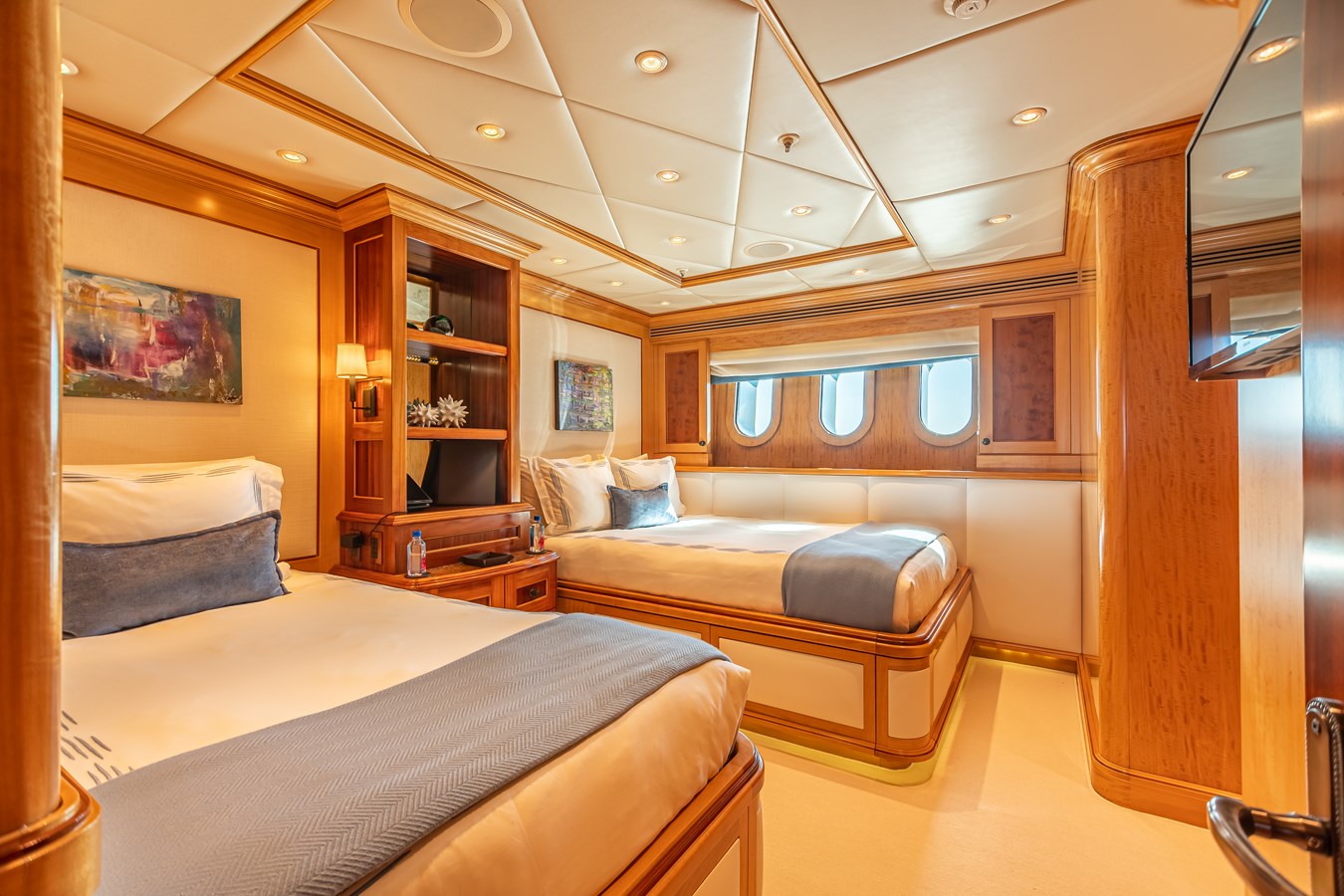

2 x Twin cabins, each have with a double bed, single bed & Pullman berth.
Both have an en suite bathroom and are located on lower deck.
Additional cabin with en suite bathroom, located on main deck aft of master cabin. Option of a double Murphy bed or 2 x pullman berths.
Dedicated guest office on lower deck
CREW1 x Captain’s cabin
1 x Engineer’s cabin
2 x Two-berth cabins
2 x Three-berth cabins

WORKS LIST

2019

• Complete paint job

MAIN SALON/DINING SALON
• New overheads installed
• Main salon aft worktops resurfaced
• Marble floor put down aft of main salon
• New stone (marble) installed on outer shelves of main salon and dining
• New furniture and soft goods throughout
• New TV installed
• New wallcovering in main salon and dining
• New wool and dull silk carpets installed in main salon and dining area
• Various artwork and ornaments replaced
• AV system has been updated and some new iPads

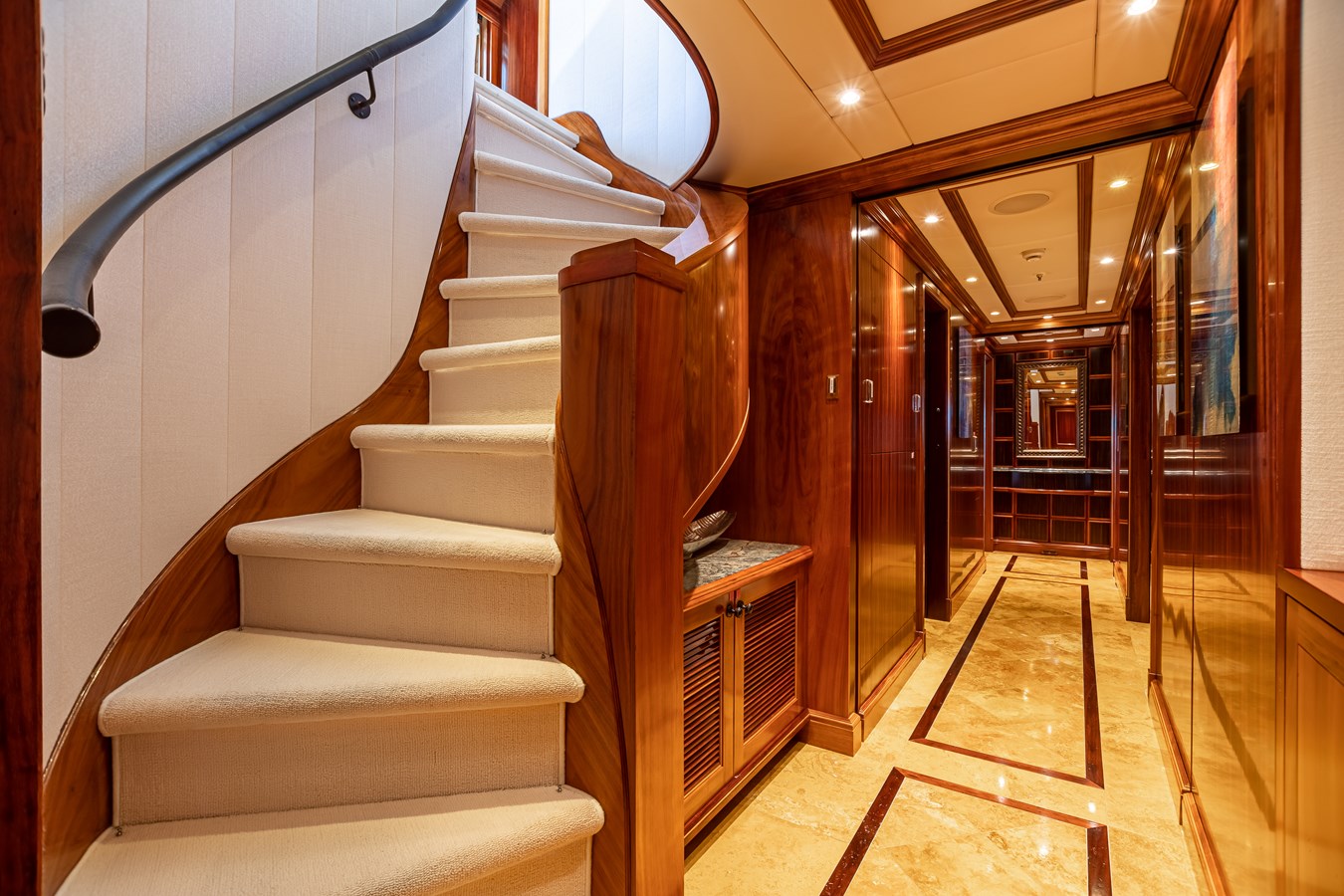

MAIN DECK CORRIDOR
• New marble flooring as well as new artwork installed

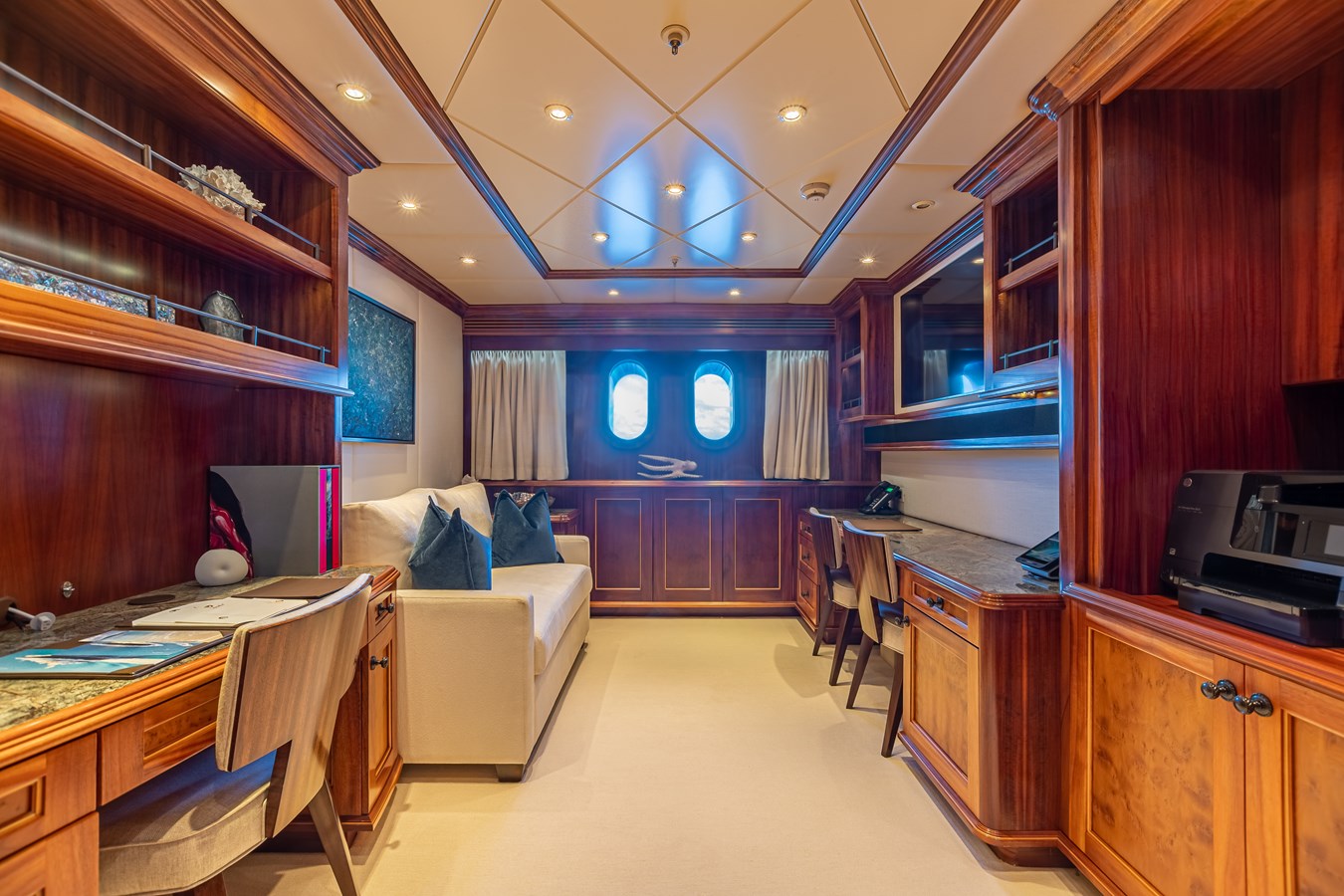

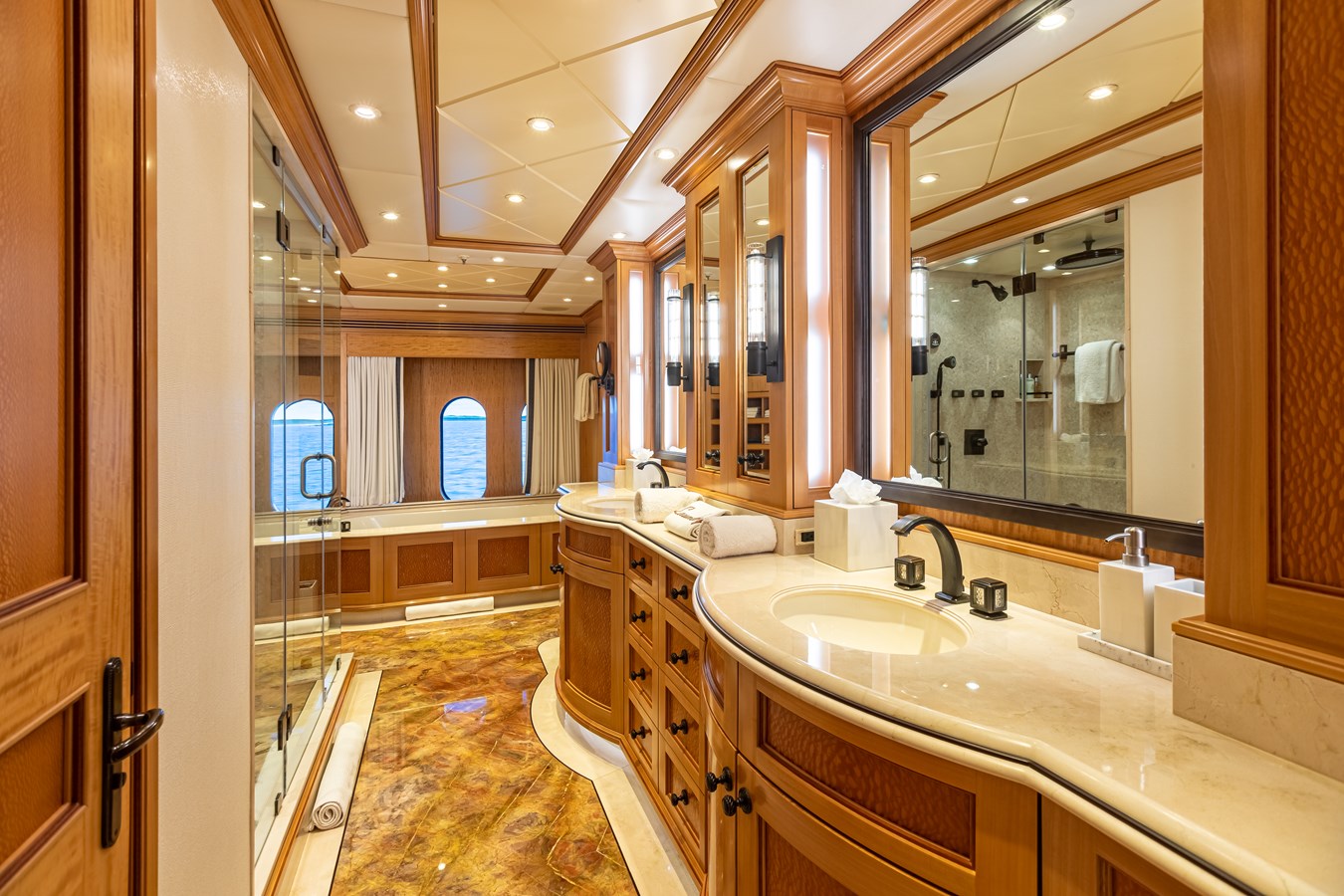

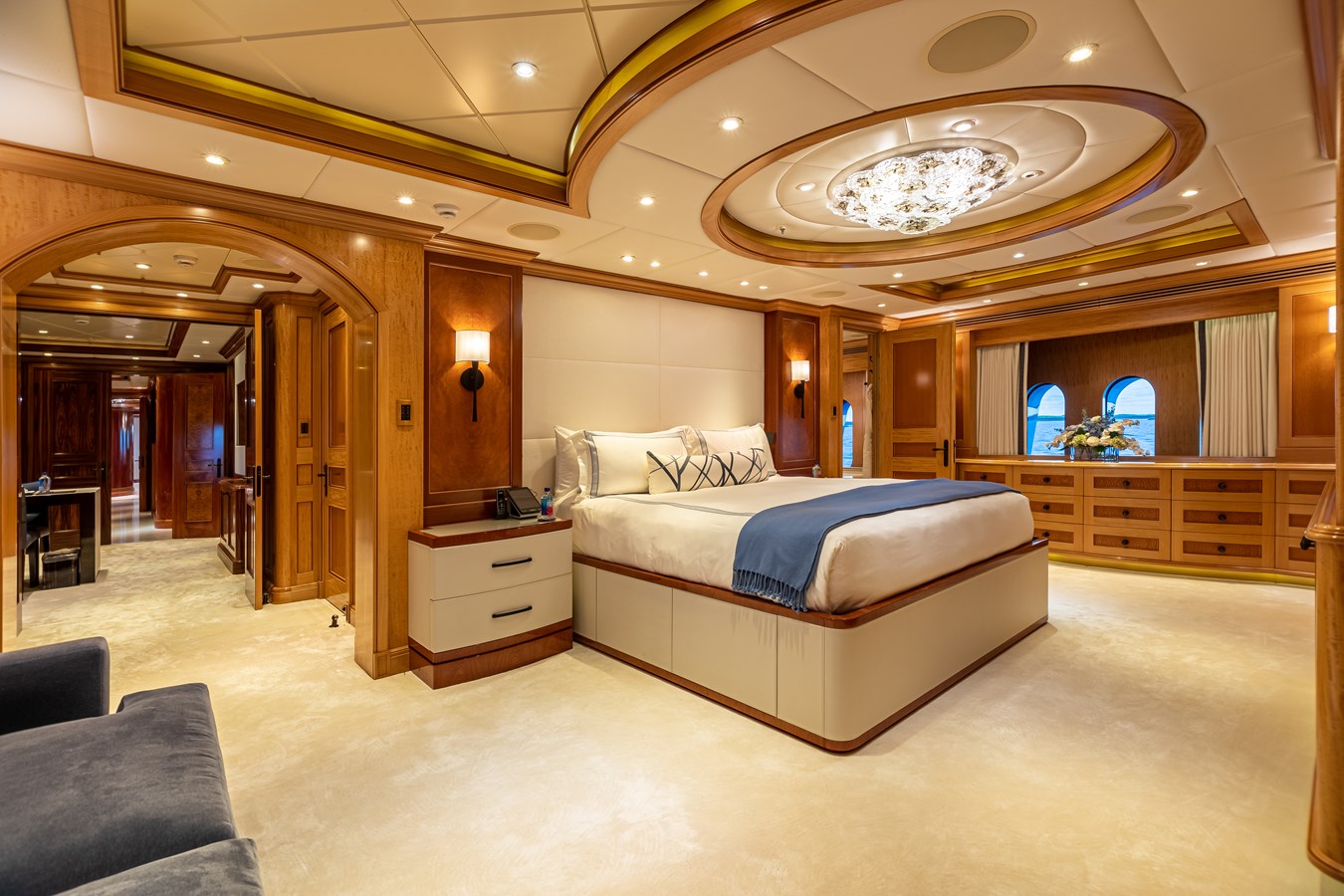

MASTER STATEROOM
• New overheads installed made Vinyl
• Master office leather floor has been taken up and carpets have been put down
• throughout the offices and master stateroom
• New furniture and soft goods in master stateroom and study
• TV replaced in Master office, AV system updated and trim around TV replaced
• Artwork/ornaments updated
• New master stateroom chandelier installed with various glass slates and new wall
• sconces installed around master cabin

GYM
• New overheads installed made from Vinyl
• New carpet installed matching the master cabin
• New drapes installed
• New wall Panels installed in room
• New glass panels installed in gym shower and new faucets being installed on sink

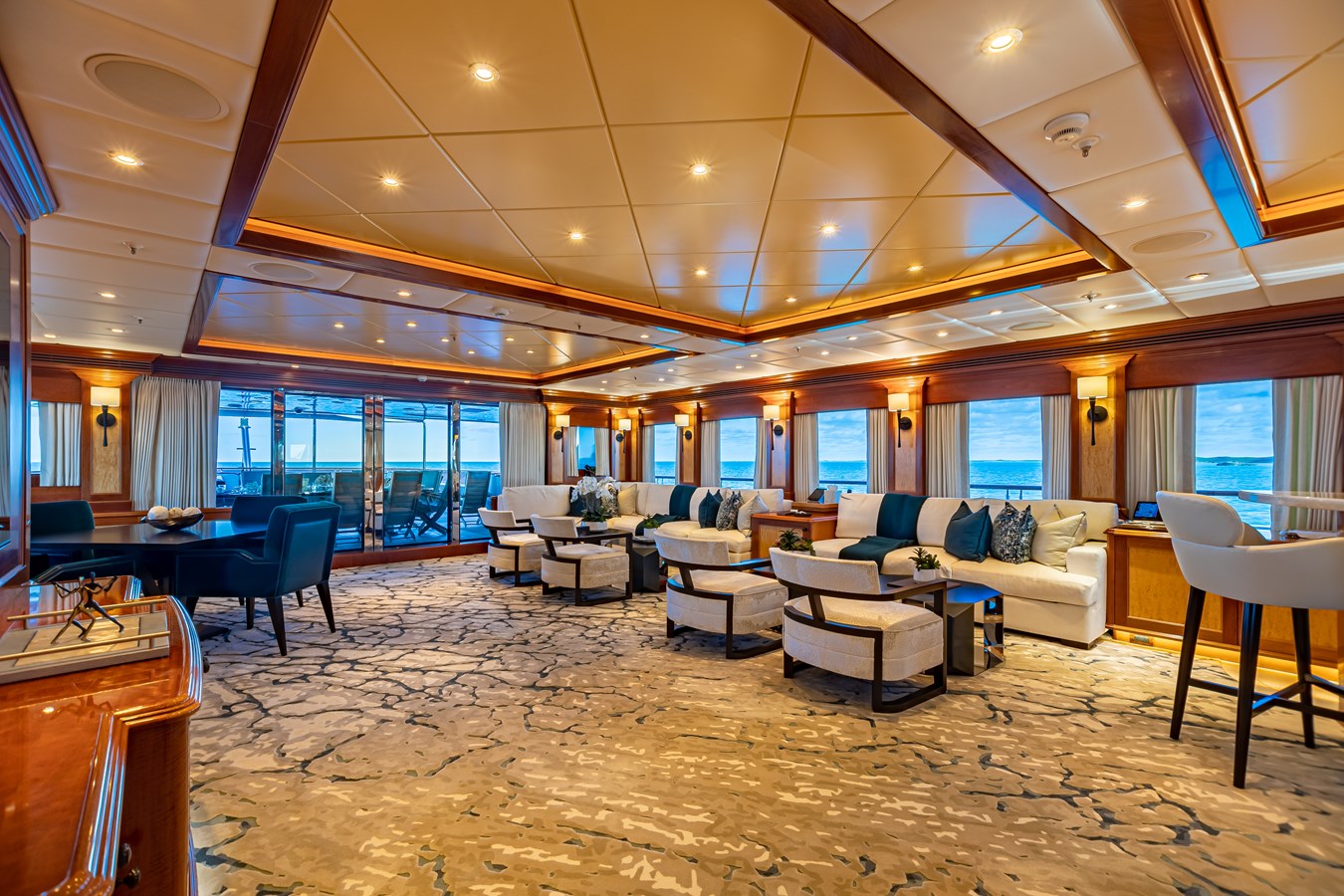

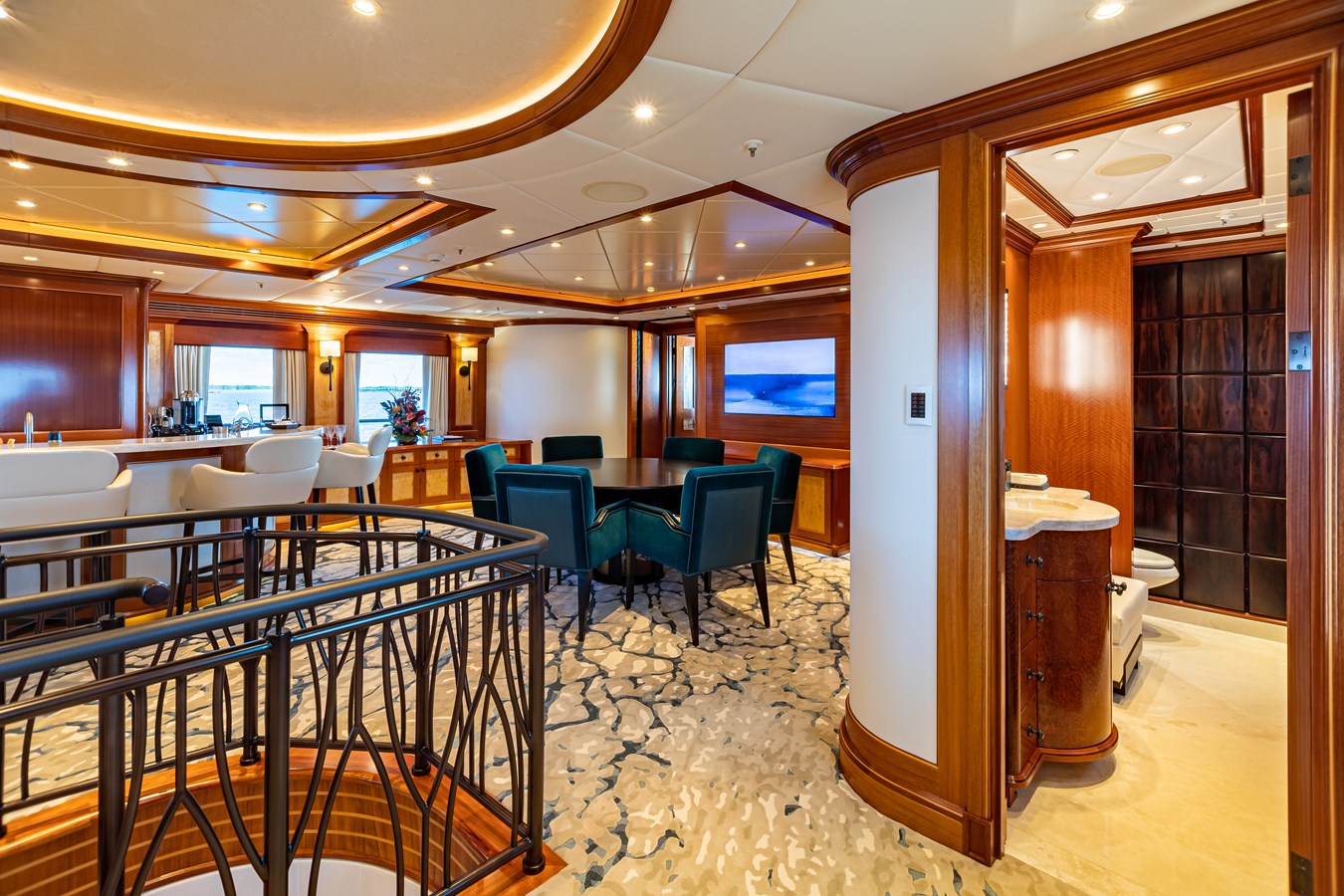

SKYLOUNGE
• New overheads installed
• New carpet has been installed
• New skylounge bar top has been installed
• Sconces replaced throughout the skylounge
• LED strip lights updated and added in areas of the skylounge

• New furniture and soft goods
• Wooden walls in skylounge have now been replaced with white wallcovering
• 2 brand new TVs installed
• Various nesting updated inside cupboards to accommodate new glassware
• New decorative pillows and cashmere blankets for skylounge as well as updated artwork around the room

SKYLOUNGE DAYHEAD AND STAIRCASES
• New Vinyl overheads in skylounge dayhead
• Skylounge dayhead floor has been replaced with marble, sink worktop replaced with marble and new faucets installed around the sink area
• Stair Wall Panel Fabric installed (whisper walls)
• Skylounge leather railing installed made from 100% leather
• Carpet installed on both guest staircases

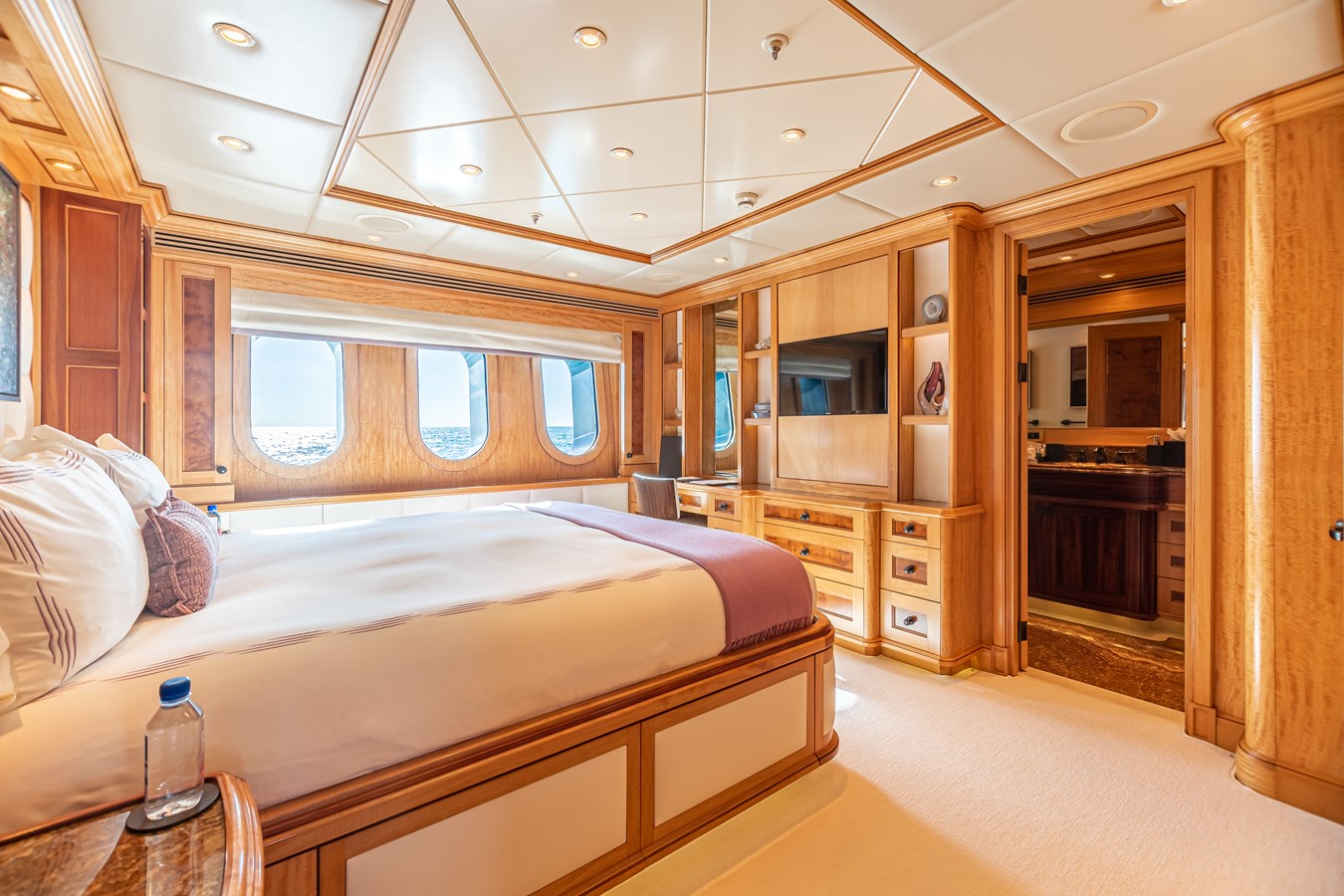

GUEST STATEROOMS
• New carpets installed in all lower guest staterooms
• Each bedroom has new headboard panels
• New shelving panels installed
• New blinds installed, roman shades
• New decorative pillows, cashmere blankets, ornaments, and artwork through guest staterooms
• New bed linen updated throughout each guest cabin
• Updated AV system in all cabins

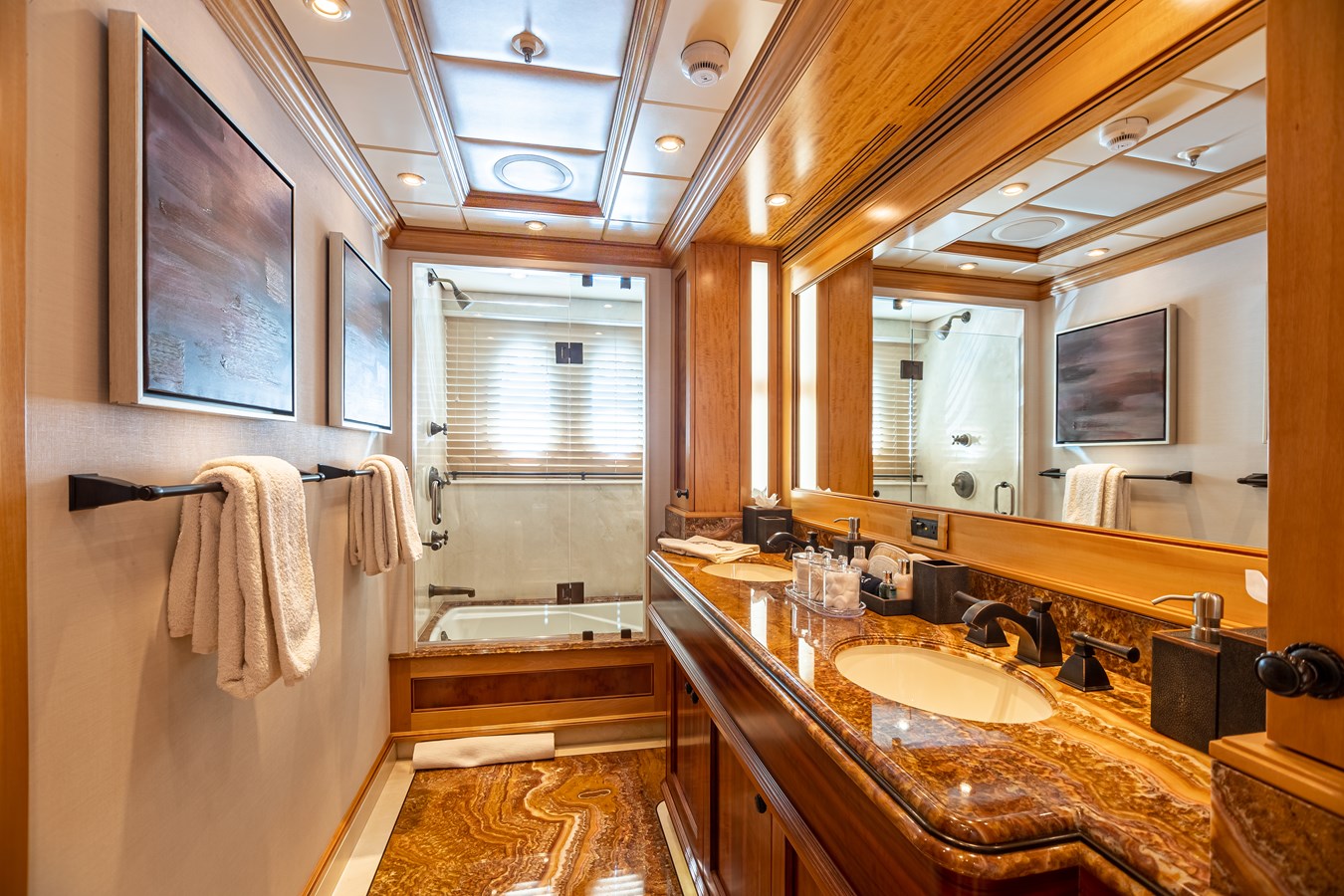

• New wall covering installed in each guest stateroom bathroom
• All faucets replaced with new ones in each guest stateroom

GUEST STUDY
• Various new furniture
• New carpet installed
• Brand new TV installed in study with new wall panels
• AV updated in study
• New speakers replaced in study

ENGINEER REFIT LIST

HULL
• zinc anodes Inspected and replaced

FRESH WATER SYSTEM
• Replaced all four Domestic Boilers

TANKS
• Inspected and cleaned

VENTILATION
Engine Room Ventilation System:
• Port & Stbd Fire Dampers Replaced with new
• Port Supply Fan Replaced with new
• Stbd Exhaust Fan Replaced with new
• All four Internal Fan Motors on Central Circulation System has been replaced with new
Galley Fan System:
• Supply Fan Replaced with new
• Exhaust Fan Replaced with new

SHIP VALVES
• All 42 Though-Hull Valves has been removed For ABS inspection
• Pressure Tested 5 New Type Approved Through-Hull Valves
• Install All Through-Hull Valves and Pressure Tested After Installed
• ABS Inspected All Through-Hull Pipes
• Replaced Stbd A/C Sea Water Outlet Through-Hull Pipe
• Replaced Stbd Generator Spray Ring By-Pass Through-Hull Pipe
• Replaced Stbd Sea Chest Through-Hull Pipe
• Repaired Port Sea Chest Through-Hull Pipes With Valves Closed
• Repaired Broken Galley Drain Grey Water Pipe Located Between Guest Study & Port Twin
• Pressure Test All Through-Hull Valves In Place

PUMPS
• Various have been removed of the vessel, inspected, repaired or replaced.

BOW THRUSTER
• Removed for inspection and seal replacement

PROPS & SHAFTS
• Port & Stbd Prop Shaft Wartsila Seals Replaced
• New port and stbd Stern Tube fwd bearing carrier with stainless steel has been fabricated and ABS approved
• port & stbd P-Struts repaired with Belzona, ABS approved

GEAR BOXES:
• both have been removed of the vessel and send over to Reintjes for 10 year Major Service
• Port & Stbd Vulkan Couplings has been serviced

STEERING SYSTEM
• emergency steering header tank oil replaced
• Filter elements and seals replaced
• port and stbd Rudders removed, bushing and seal replaced, shaft alignment checked, rudders pressure tested, hydraulic rams removed and serviced, hose fitting replaced

MAIN ENGINES
• all engine vibration mounts replaced

GENERATORS PORT & STBD
• sea water pipes replaced
• aft crankcase seals on both engines replaced
• injector wiring harness on both engines replaced with a CAT upgraded ones
• power unit space heaters installed

BATTERIES
• Replaced all fire door batteries
• Replaced all water tight doors batteries
• All four Main Engines starter batteries replaced

WINDLASS
• Both port & stbd units serviced and new seals installed

VSAT & TVRO
• Install new Italian
• Completed 10 years inspection and service

AIR COMPRESSED SYSTEM:
• Replaced both air compressors with new
• Replace service reservoir relief valve located in the bridge
• Borescoped all 3 air reservoirs

OWS
• Opened, cleaned, Monitor Calibrated and inspected by ABS & Flag surveys

BILGES
• Cleaned and painted all bilges

GALLEY OVEN MODIFICATION:
• Fabricated a new island and installed 2 new MKN ovens and ice maker

DIESEL PURIFIER
• Carried out major, intermediate, oil change, clutch pads and bearings replacement

LOAD BANK
• Replaced all gaskets, including element gaskets and pipe fitting gaskets and replaced pump end

2018

STABILIZER SYSTEM
• Port & Stbd fins removed
• Upper and lower seals replaced
• Shaft, roller & hull sleeve bearings on Port & Stbd sides replaced
• All cylinder spherical bearings replaced
• Replaced all accumulator bladders and filling valves
• Replaced all o-rings on hydraulic distribution block solenoid valve

BOW THRUSTER
• All bearings replaced

STERN THRUSTER:
• Thruster leg replaced with brand new unit
• Shaft Seals replaced
• Electrical Motor removed and serviced including megger testing

2017

MAIN ENGINES - Painted both engines after below service.
• PORT - Top End 9000 hr service completed
• Replaced all exhaust gaskets & insulation
• Replaced sea water flex couplings
• Removed and serviced both Starters Motors
• STBD - Top End 9000 hr service completed
• Replaced all exhaust gaskets & insulation
• Alternator pulley and belt checked
• ET Full Check
• Removed and serviced both Starters Motors

GENERATORS
• PORT - Major Overhaul Carried out
• STBD - Major Overhaul Carried out

EMERGENCY GEN
• Replaced four starter batteries with new

PTO UNITS
• Rexroth hydraulic motor removed for servicing and testing, unit installed and tested
• PTO pumps removed and inspected, new seals & gaskets installed, units tested
• Hydraulic hoses on PTO units replaced

STABILIZER SYSTEM - PTO pump suppressors rebuild

A/C SYSTEM
• Rebuild both 1 & 2 sea water pumps
• Rebuild both 1 & 2 chiller pumps

2016

PORT & STBD GENERATOR
• Installed larger fuel booster pump on both Gens
• Woodward EasyGen PT Isolation Installation carried out
• Installed new block heat sensors on both Gens
• Install Fuel Restriction gauges after Racor Filter

LOAD BANK
• Replaced all heater elements, pressure sensor and flow sensor
• Replaced all seals on housing
• Installed new cooling water pump & motor

MOORING/WINDLASS
• Entire aft capstans removed for full service
• Windlass hydraulic pump & gearbox overhauled
• Gypsy bushings replaced
• Adaptors and hydraulic hoses replaced

BATTERIES
• Master & Slave Transas Memory Battery replaced
• Replaced Port Engine Room Battery Bank batteries x 4
• Replaced Stbd Engine Room Battery Bank batteries x 4

LAZ (TRANSOM) DOOR
• Removed all locking pins and seals replaced

FRESH WATER SYSTEM
• All boiler elements replaced
• Replaced all boilers safety valves

2015

DIESEL PURIFIER
• Installed a float switch in drain tank
• Carried out a major service
• Carried out an intermediate service

MOORING/WINDLASS
• Windlass brake pad removed and replaced with riveted type
• All windlass bushings replaced
• Windless drive unit removed and full service carried out

QUATUM HYDRAULIC SYSTEM
• 3x solenoid valves on power pack replaced
• All suppressors and accumulators replaced
• Inboard sea water cooling pump replaced

DISCLAIMER

These particulars have been prepared by us from information provided by the sellers and are intended as a general guide to the vessel. We cannot, however, be liable for any inaccuracy. It is up to the purchaser to confirm details of concern to him by survey, inspection and/or enquiry of the seller and to ensure that the purchase contract properly reflects his concern and specific details upon which he may rely. We always advise an independent survey.

Schedule A Showing


Speak To A Qualified Yacht Broker


Listing Marketed by

Kevin Merrigan
Northrop & Johnson Yachts-Ships LLC - FL
2015 SW 20th Street, Suite 200 Fort Lauderdale, Florida, 33315 USA

I'm interested in UNBRIDLED

Share With Your Friends

TRINITY 2009

Call Broker

Kevin Merrigan
Northrop & Johnson
