Additional specifications are available for this listing. Click below to get detailed information.
| MAIN CHARACTERISTICS | |||||||||||
| Name: | GWEILO | ||||||||||
| Type: | Schooner | ||||||||||
| Builder: | Mengi Yay | ||||||||||
| Year: | 2009 | ||||||||||
| Refit Year: | 2021-2022 | ||||||||||
| LOA (M/FT): | 47.40 | M | 155’ | 6’’ | |||||||
| 29.70 | M | 97’ | 5’’ | ||||||||
| Length COR: | 35.62 | M | 116’ | 9’’ | |||||||
| Beam Overall (M/FT): | 8.35 | M | 27’ | 5’’ | |||||||
| Draft (Keel up) (M/FT): | 4.70 | M | 15’ | 5’’ | |||||||
| Gross Tonnage: | 157 tonnes | ||||||||||
| Displacement (Fully Loaded): | 184 tonnes | ||||||||||
| 330 | M² | 1,082 | FT² | ||||||||
| Foresail Sail Area: | 263 | M² | 862,86 | FT² | |||||||
| Staysail Sail Area: | 108 | M² | 354,33 | FT² | |||||||
| Yankee Sail Area: | 185 | M² | 606’95’’ | FT² | |||||||
| Rig: | Aluminium | ||||||||||
| Hull Material: | Cold molded | ||||||||||
| Superstructure: | Wood Varnish | ||||||||||

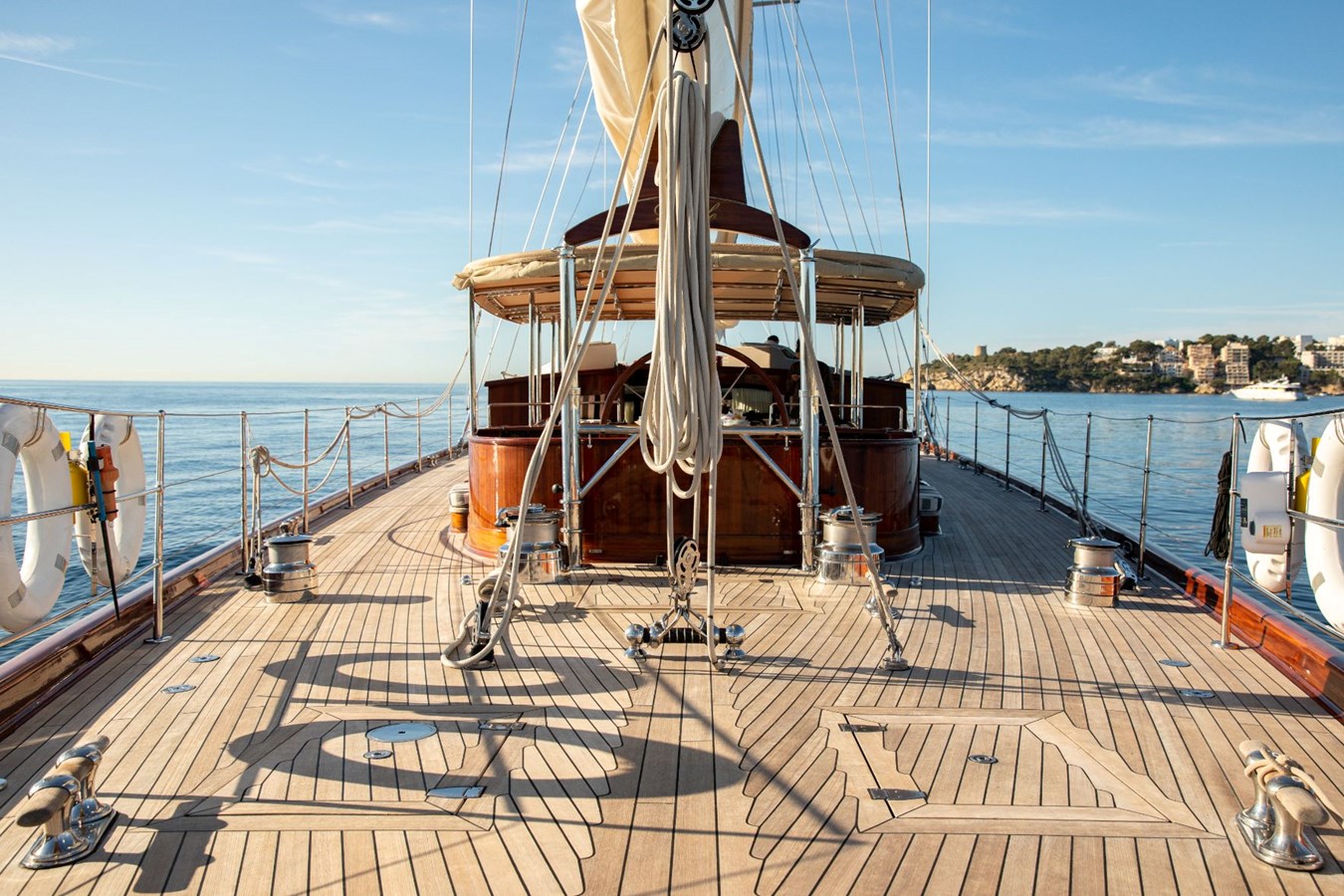

| Decks: | Teak | ||||||||||
| Flag: | Cayman Islands | ||||||||||
| Classification: | RINA, surveyed to LY2 compliance | ||||||||||
| MCA: | Commercially Compliant | ||||||||||
| Naval Architect: | Dykstra Naval Architect | ||||||||||
| Exterior Designer: | Dykstra & Partners | ||||||||||
| Interior Designer: | Hakan Ezel | ||||||||||
| Main Engines: | Caterpillar 550HP 3406E | ||||||||||
| Speeds: | 13 knots Max @ 2.100 RPM 100/HR | ||||||||||
| 11 knots Cruising @ 1.700 RPM (variable pitch propellor) 72/HR | |||||||||||
| 9 Knots Economical | |||||||||||
| Guest Accommodation: | 8 guests in 3 staterooms | ||||||||||

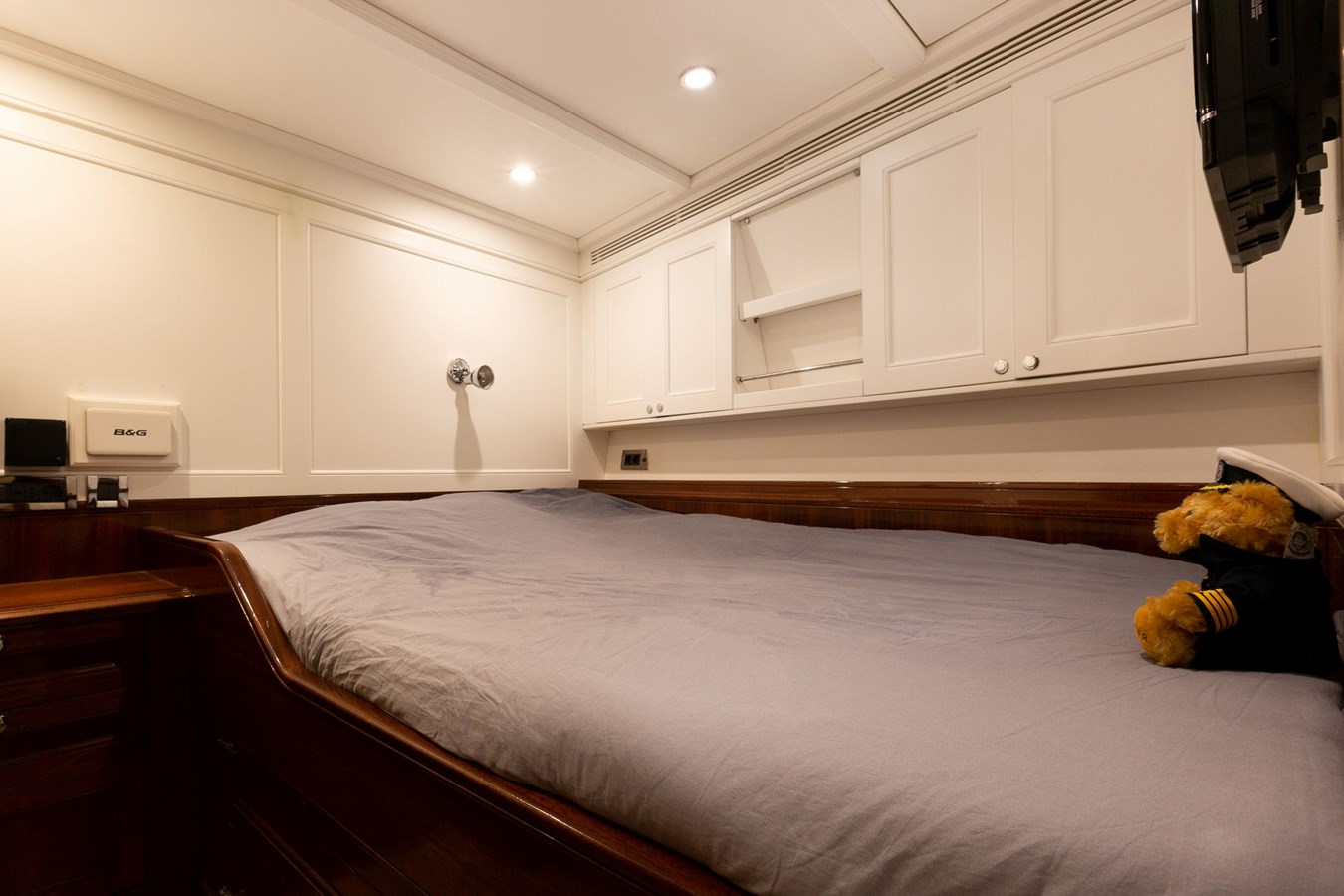

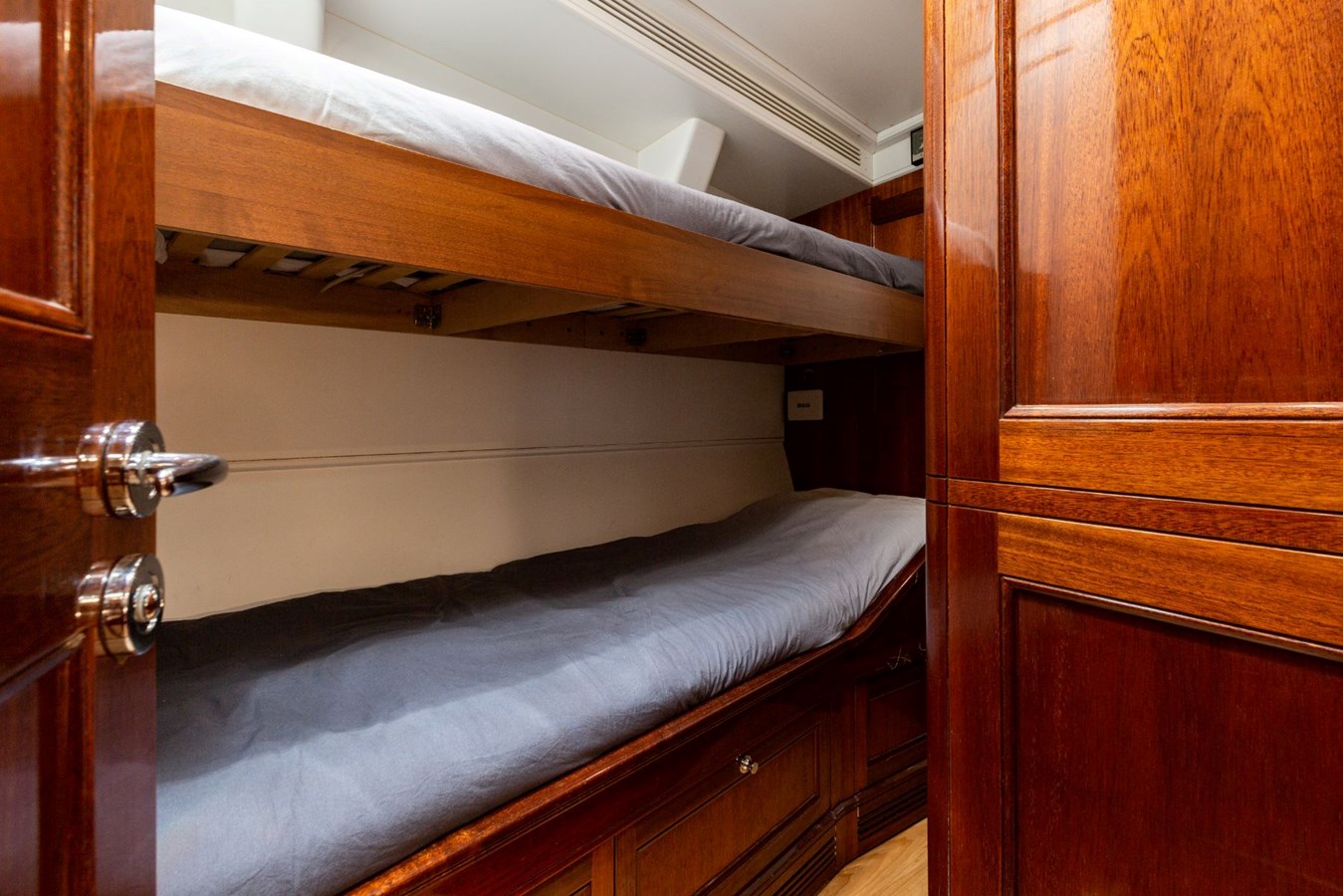

| Crew Accommodation: | 7 crew in 4 cabins | ||||||||||
| COMMENTS AND NOTEWORTHY FEATURES AT A GLANCE | |||||||||||

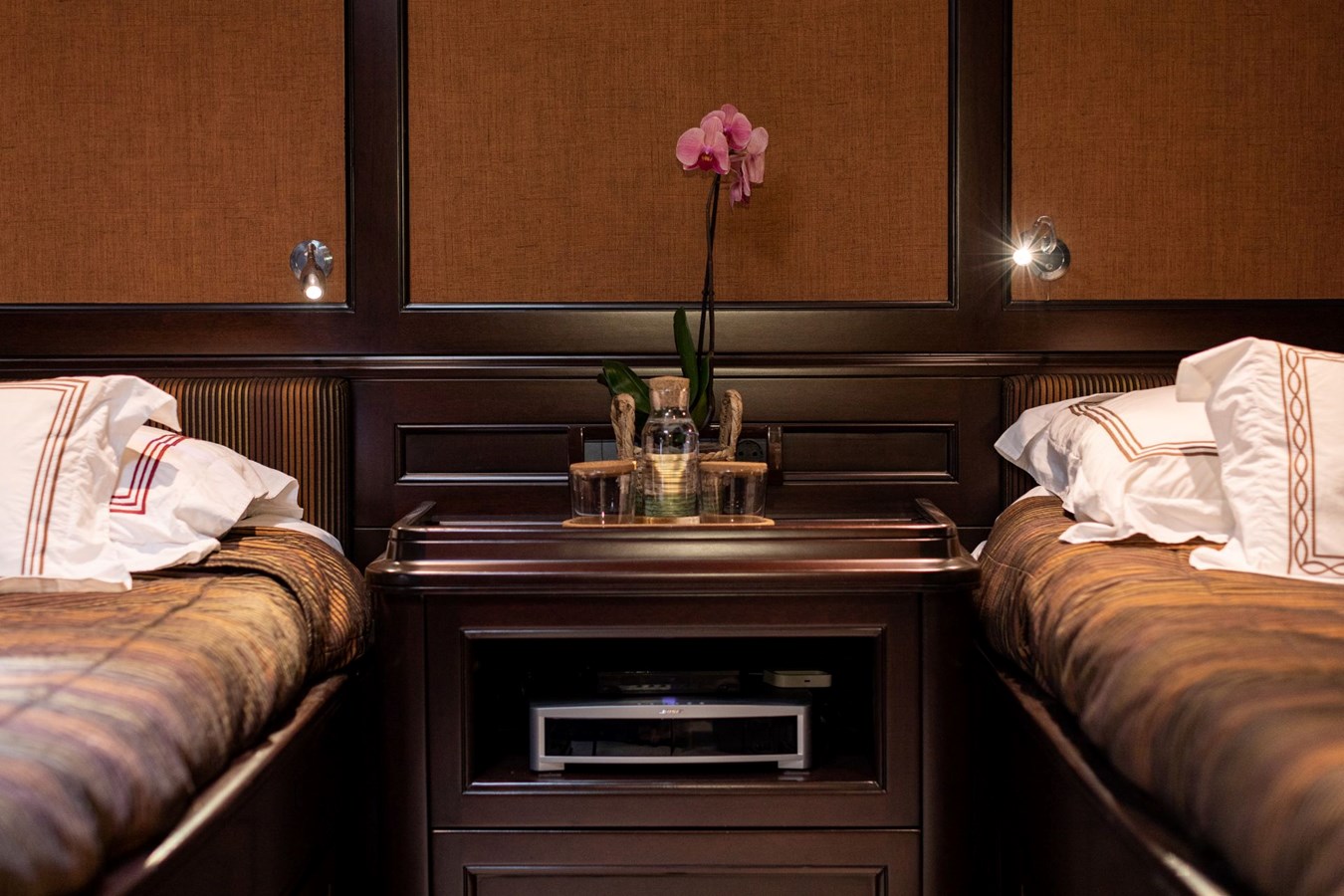

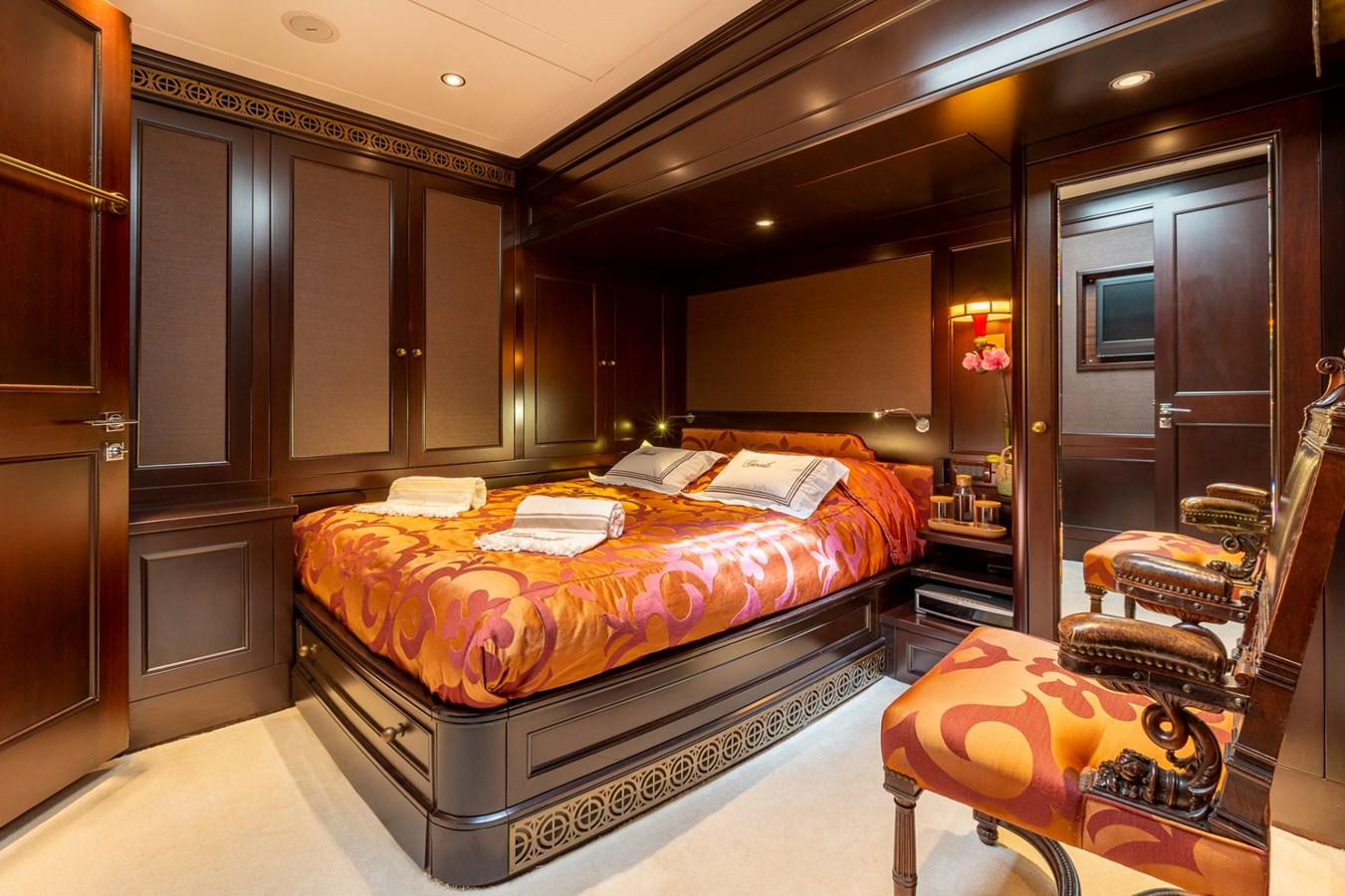

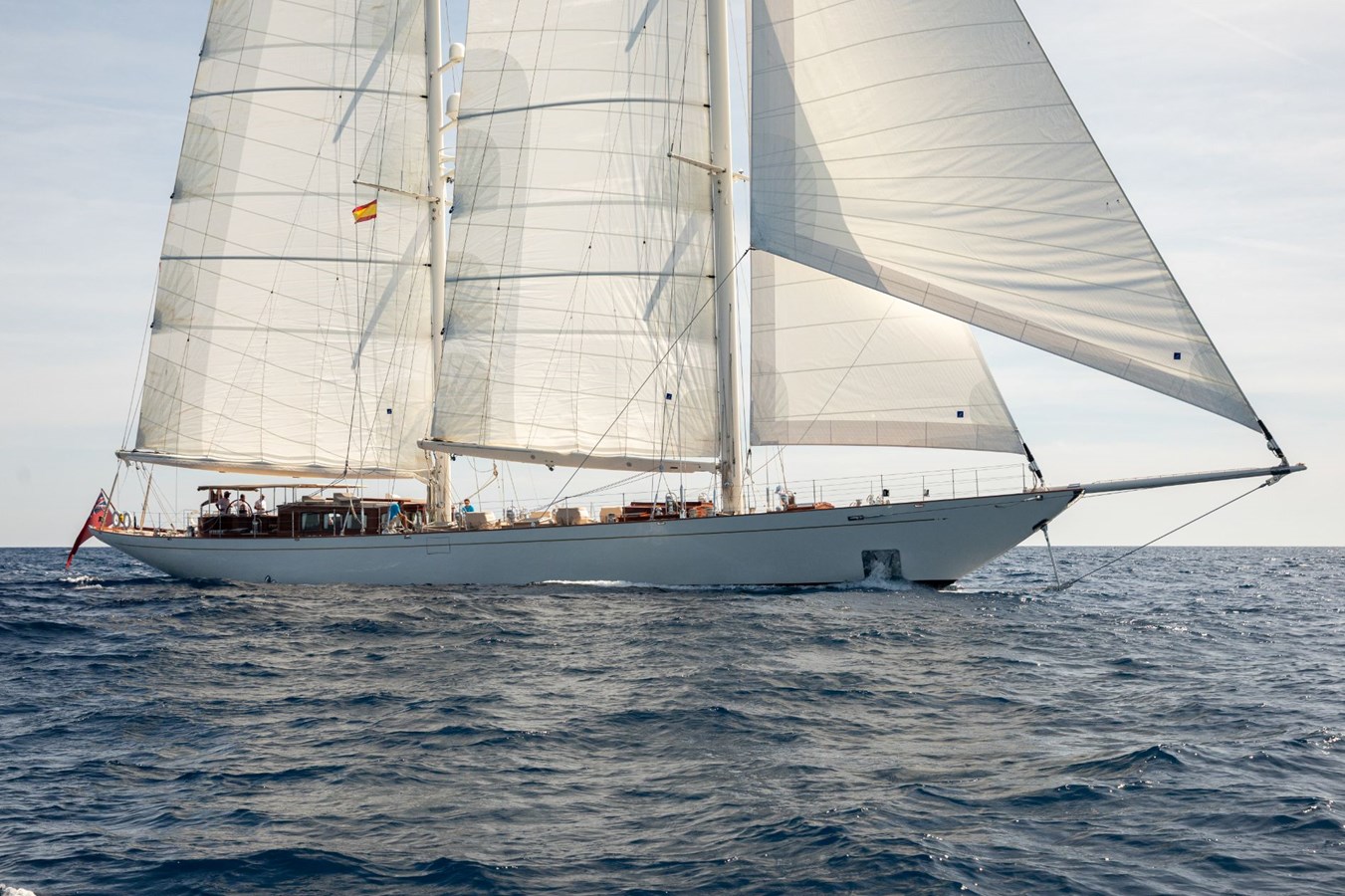

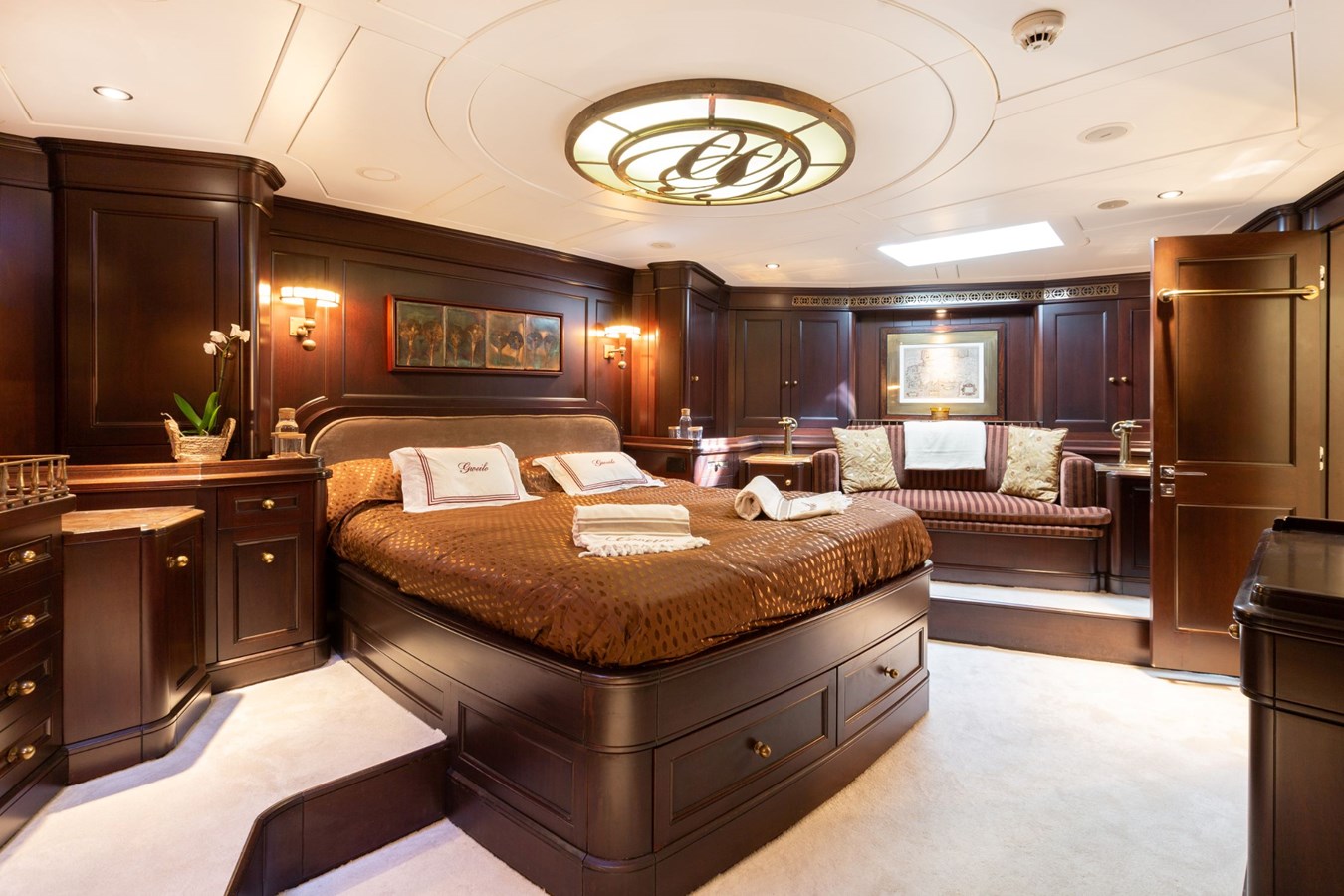

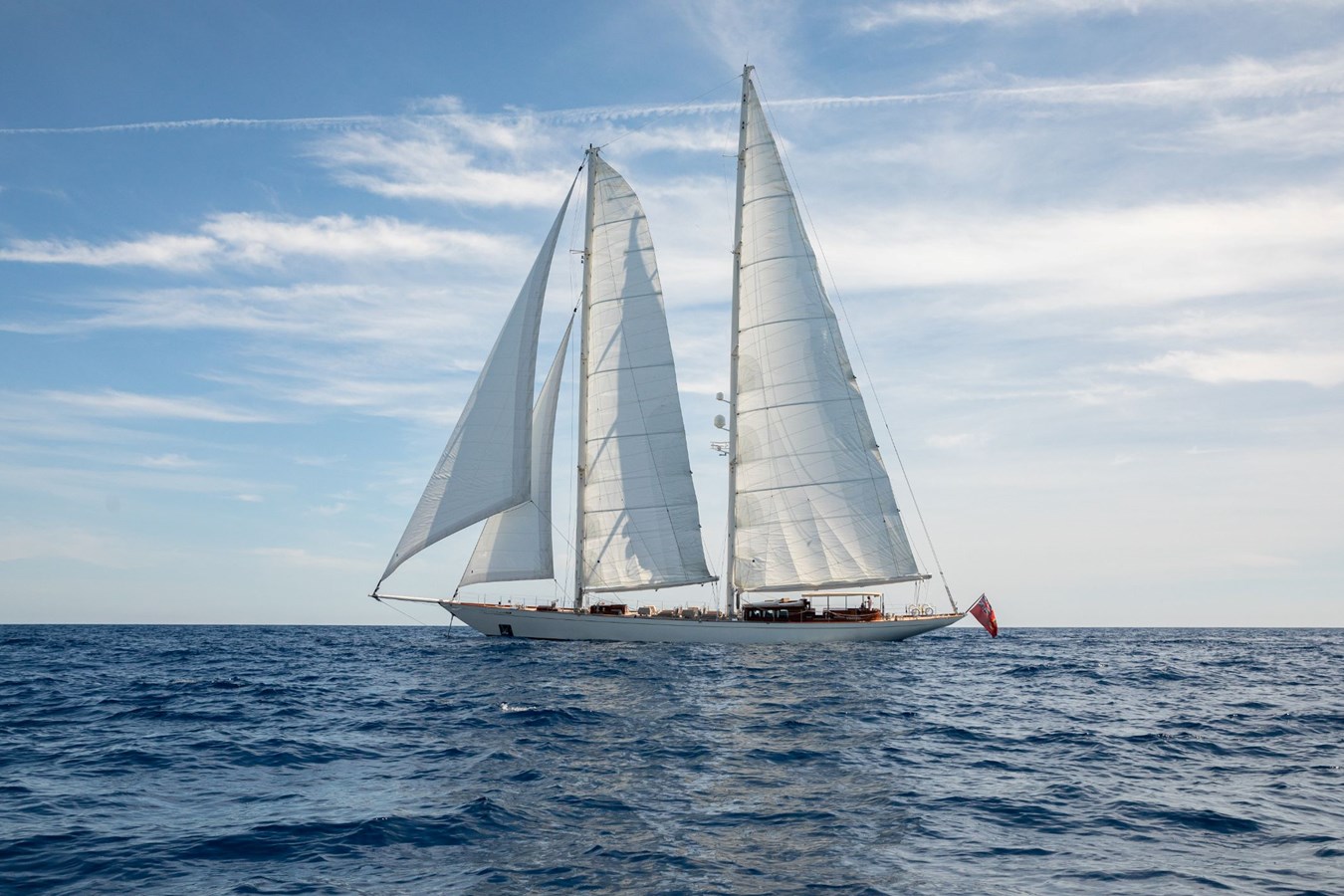

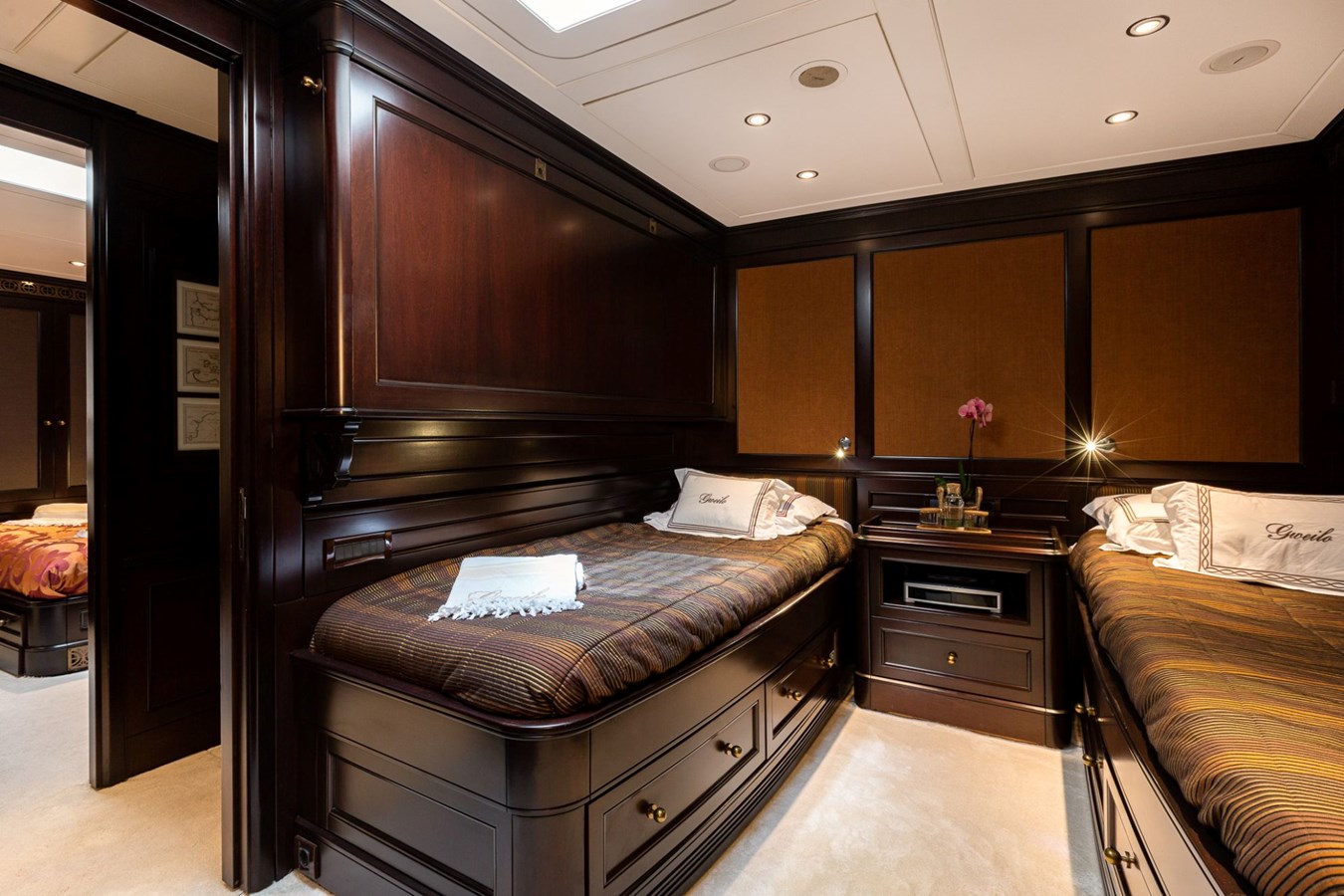

| GWEILO is an elegant two masted wooden schooner sailing yacht built in 2009. Classical lines, a traditional style rig and a long keel make her very comfortable under sail. Designed by Dykstra Naval Architects, GWEILO was built in cold moulded epoxied wood by Turkish yard Mengi-Yay and delivered in 2009. Her interior is made up of dark panelled woods with rich fabrics and accommodates up to eight guests in three staterooms consisting of a full beam master suite, VIP suite and a twin with two Pullman berths. All cabins feature entertainment centres, television screens and en suite shower facilities. The deck spaces are large with sun loungers for relaxing and there is a spacious cockpit dining area with an expandable table which can comfortably seat up to nine people. Under power, a single 558hp Caterpillar diesel engine gives GWEILO a cruising speed of 11 knots and a maximum speed of 13 knots. | |||||||||||
| classification | |||||||||||
| Flag: | Cayman Islands | ||||||||||
| Port of Registry: | Georgetown | ||||||||||
| Classification: | RINA Commercial | ||||||||||
| EU Tax Status: | Not Paid | ||||||||||
| US Tax Status: | Not Paid | ||||||||||
| Official Number/IMO number: | 741405 / 8356883 | ||||||||||
| Official Registration: | Georgetown | ||||||||||
| Home Port: | Genova, Italy | ||||||||||
| regulation | |||||||||||
| Vessel Registration: | Private | ||||||||||
| Built to Commercial Compliance: | RINA LY2 | ||||||||||
| MARPOL Code: | Ready to comply | ||||||||||
| Mini ISM: | Ready to comply | ||||||||||
| MLC: | Ready to comply | ||||||||||
| ACCOMMODATIONS | |||||||||||
| |||||||||||

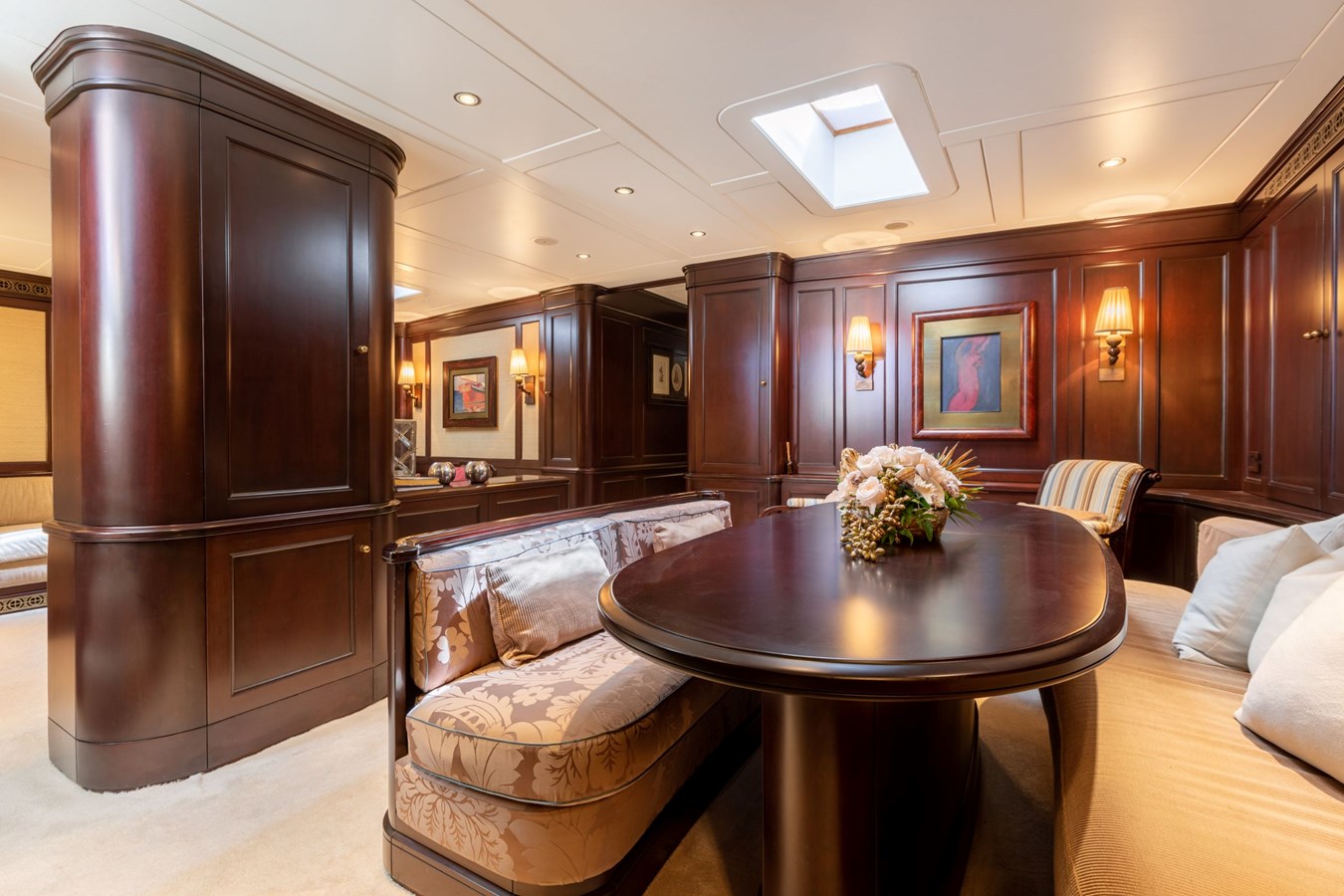

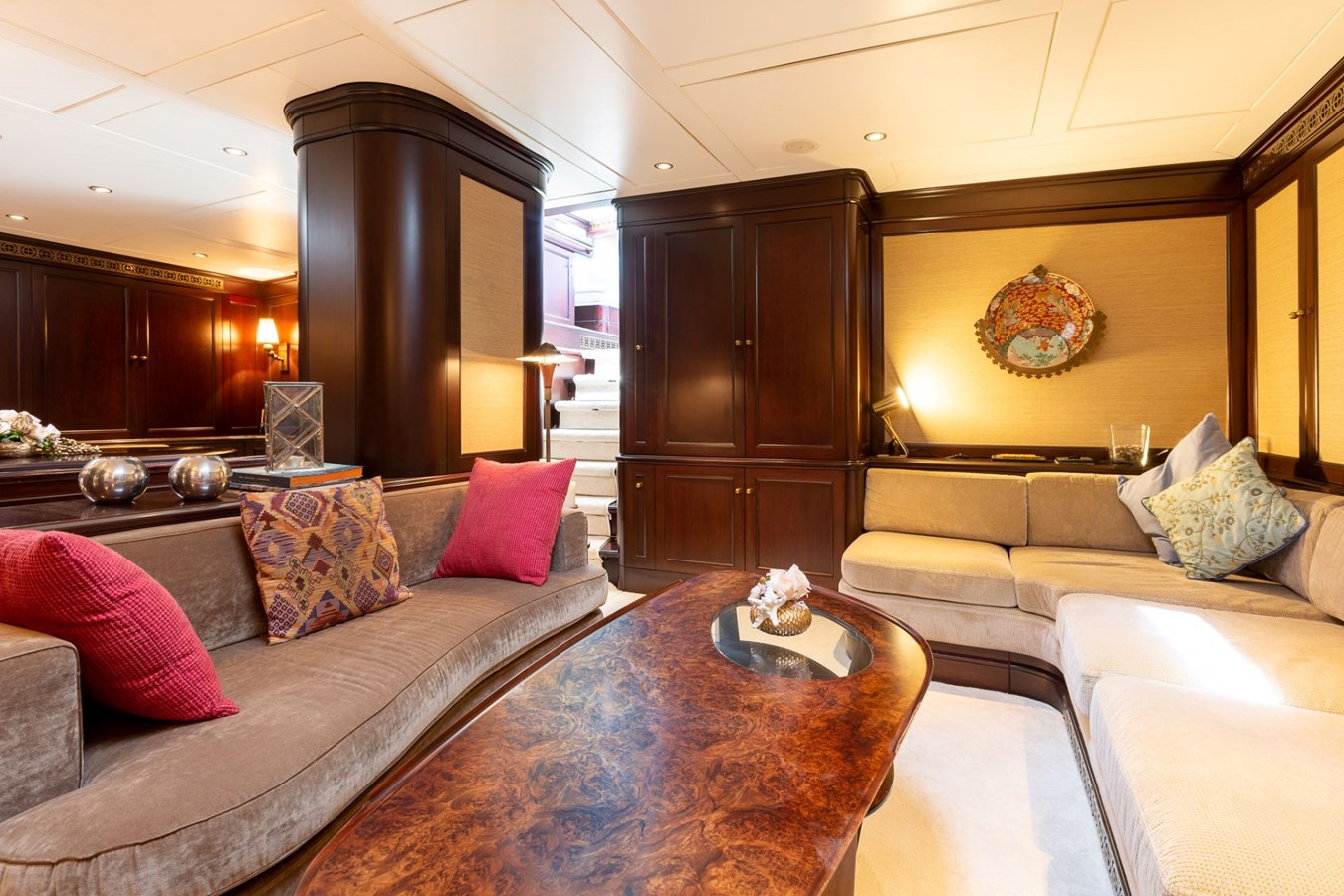

| Saloon: Full beam saloon with port side C-shaped lounge area and starboard dining table | |||||||||||

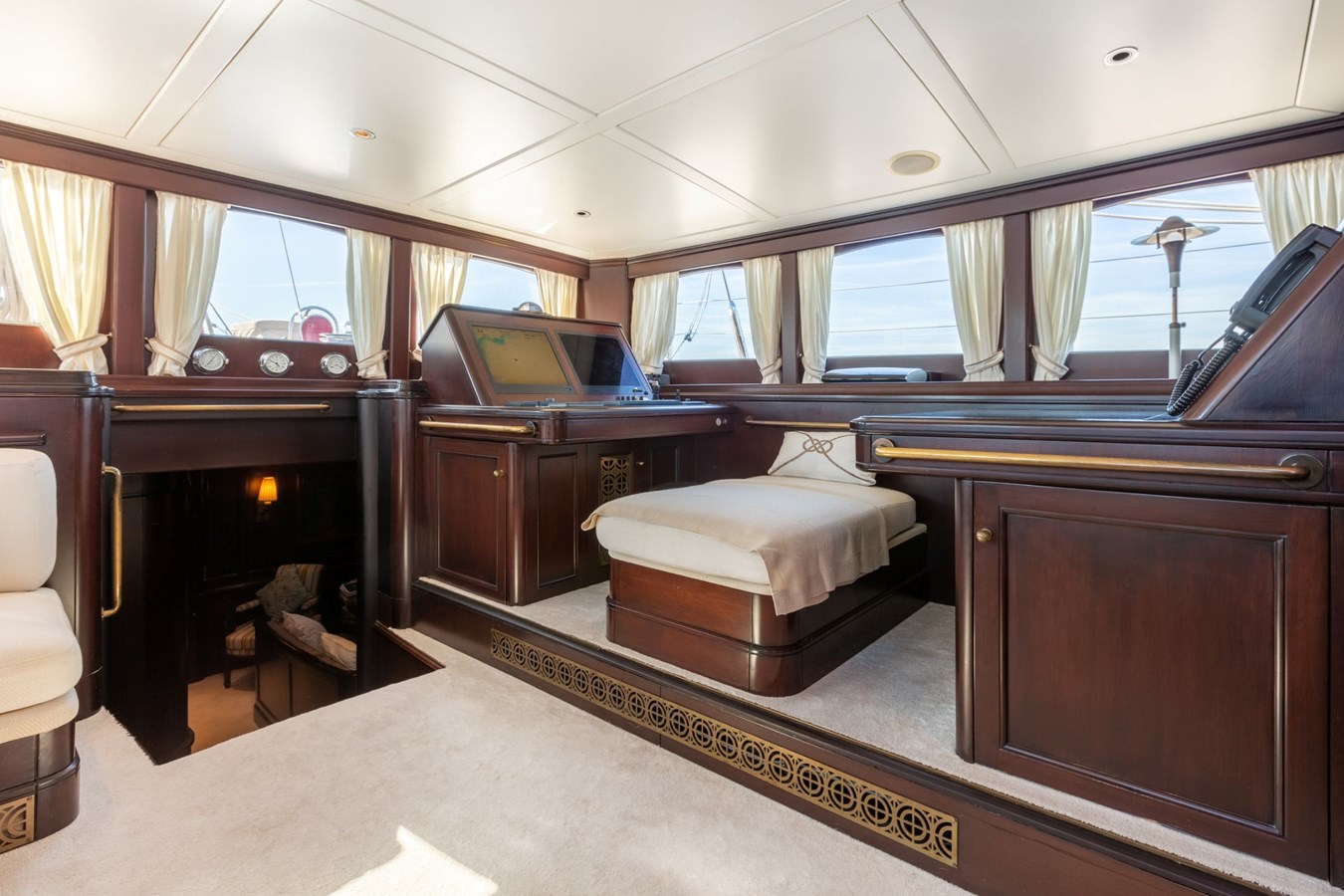

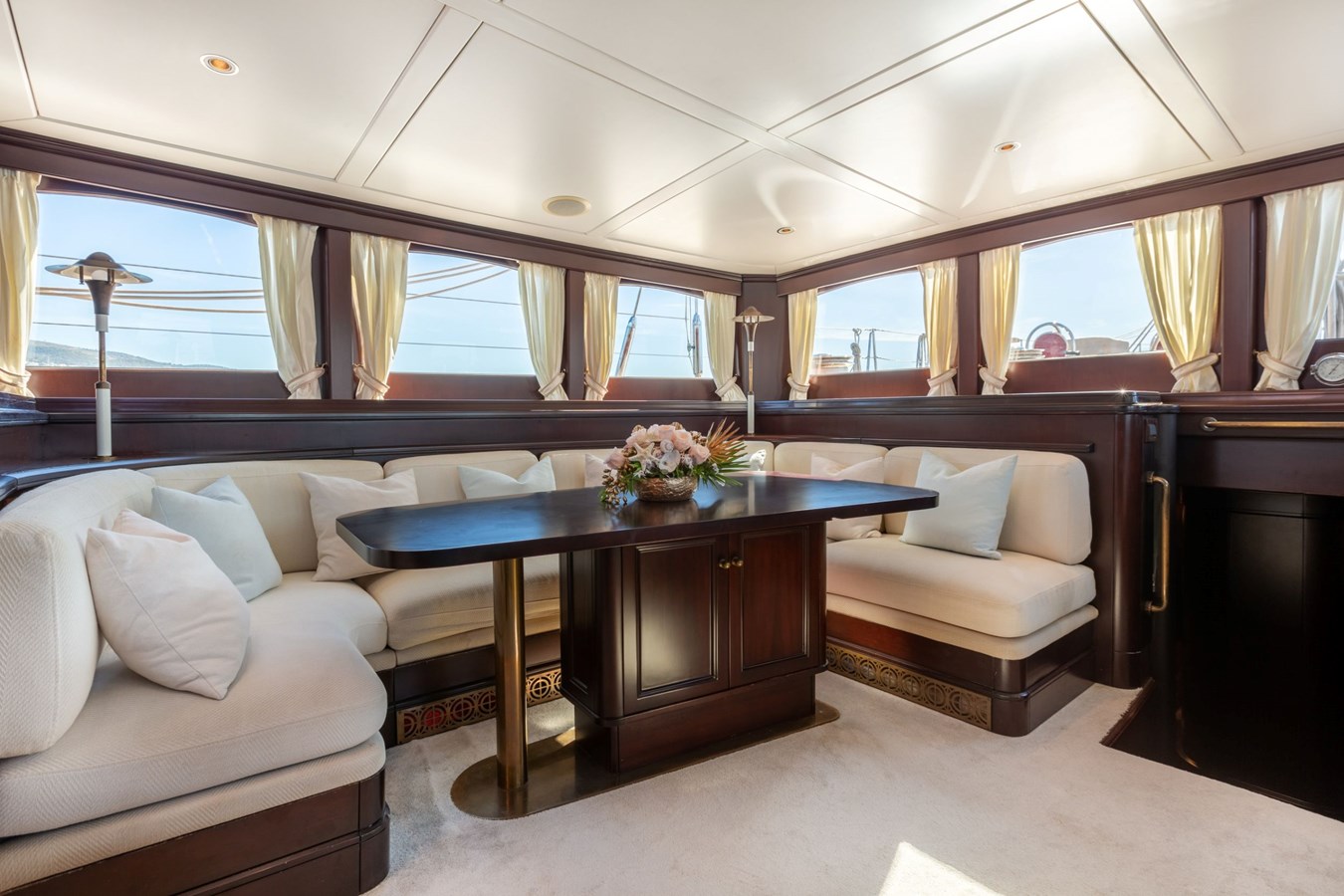

| Deckhouse: C-shaped settee and table to port. Chart table and navigation equipment to starboard | |||||||||||

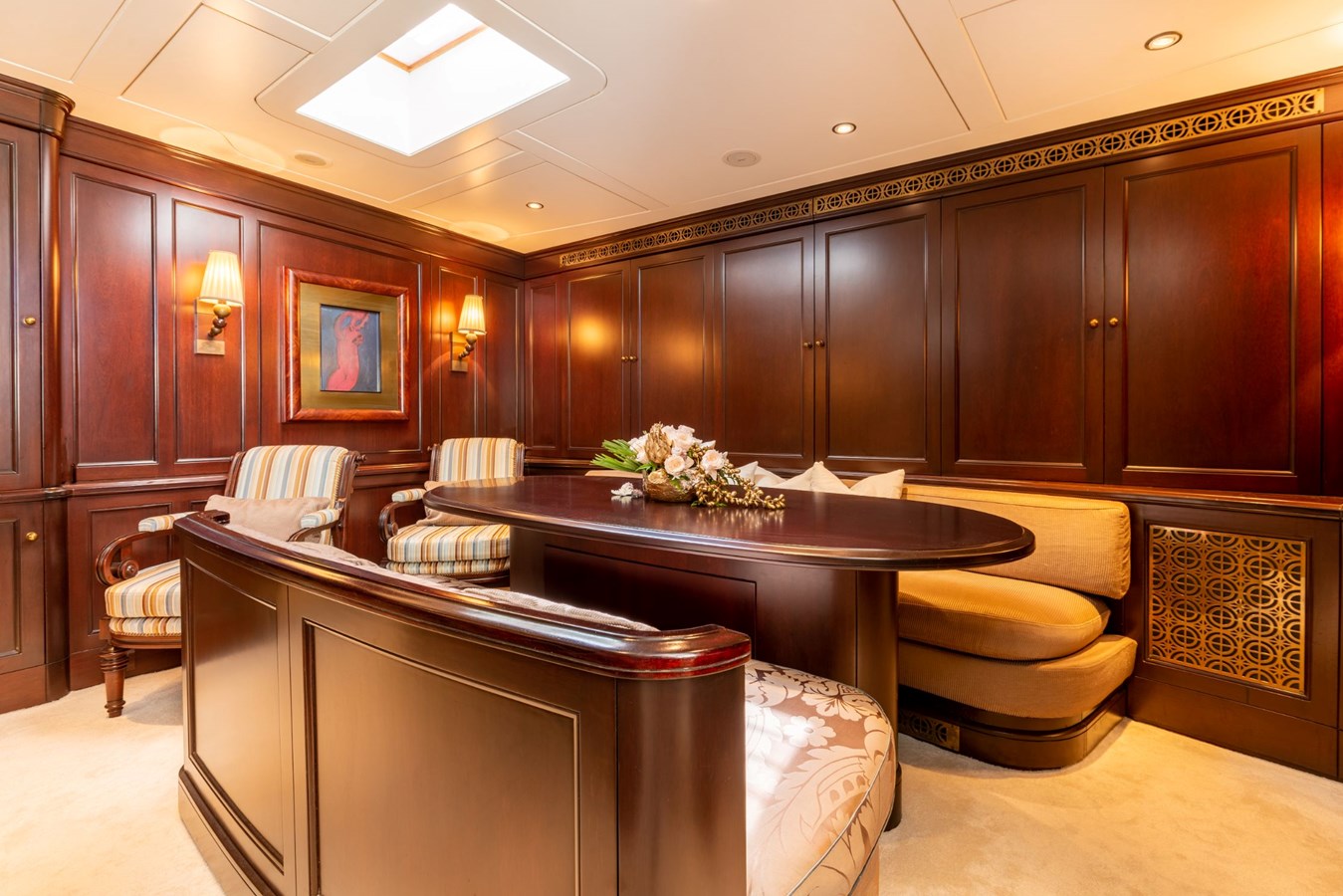

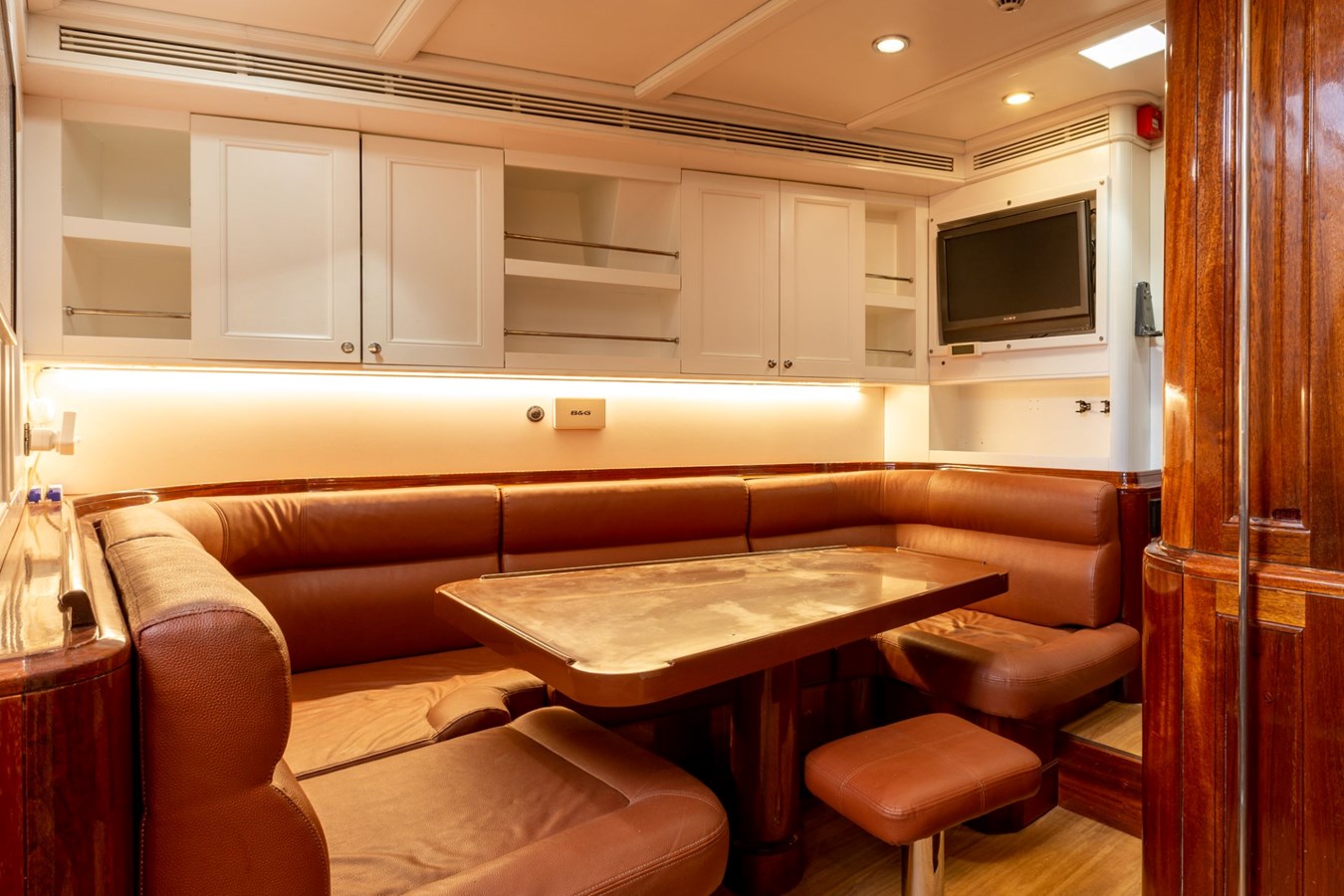

| Lower Saloon: U-shaped seating area set to port with additional dining area on the starboard side | |||||||||||
| CONSTRUCTION | |||||||||||
| Hull Material: | Cold molded | ||||||||||
| Superstructure Material: | Wood varnish | ||||||||||
| Decks Material: | Teak | ||||||||||
| Paint: | AWLGRIP | ||||||||||
| CAPACITIES | |||||||||||
| Gross Tonnage: | 157 tons | ||||||||||
| Net Tonnage: | 47 tons | ||||||||||
| Displacement Tons: | 187 tons | ||||||||||
| Fuel Capacity: | 10,000 | Litres | 2,641 | Gallons | |||||||
| Fresh Water Capacity: | 4,000 | Litres | 1,056 | Gallons | |||||||
| Water Makers: | 220 | Litres / hr | 58 | Gallons | |||||||
| Grey Water: | 1,200 | Litres | 317 | Gallons | |||||||
| Black Water: | 650 | Litres | 171 | Gallons | |||||||
| Waste Oil: | 300 | Litres | 79 | Gallons | |||||||
| Speed | Consumption p/h | Range | RPM | |
| Maximum: | 13 | 2100 | ||
| Cruising: | 10-11 | 1700 | ||
| Economical: | 9 | |||
| MAIN MACHINERY | ||
| Main Engines: | Caterpillar 550 HP 3406E | |
| Engine Hours: | 2,927 hrs. September 2023 | |
| Propulsion Type: | Variable pitch Amartek | |
| Engine Controls: | KWANT electronic controls | |
| Gear Boxes: | ZF 350. Ratio ZF 3501V | |
| Shafting: | Single | |
| Propellers: | Variable pitch Amartek | |
| GENERATORS & ELECTRICITY | ||
| Generators: | 2 x Onan 50 Kw 220/380V 50 cycle | |
| Generator Hours: | Port: 5,700 hrs. September 2023 | |
| Starboard: 5,800 hrs. September 2023 | ||
| Generator Fuel Consumption: | 10 litres per hour | |
| Shore Power: | 380V 100A | |
| Shore Power Converter: | NO | |
| Shore Power Transformer: | Yes | |
| Battery Chargers: | Mastervolt | |
| UPS(uninterruptible power supplies): | 1 SCHNEIDER for Nav Equipment and Fire Alarm | |
AUXILIARY MACHINERY | ||
| Steering System: | BCS | |
| Steering Gear: | BCS | |
| Emergency Steering: | BCS | |
| Bow Thruster: | AB TRACK | |
| Stern Thruster: | AB TRACK | |
| Under Water Lights: | Underwaterlights “ultimate80” | |
| Engine Controls: | KWANT Electronic | |
| Fuel & Oil System | ||
| Fuel Filters: | SEPAR | |
| Fuel Oil Separator: | ALFA LAVAL | |
| Fuel Transfer Pump: | GIANNESCHI | |
| Fuel Filling Pump: | GIANNESCHI | |
| Bunkering Station: | Yes | |
| Oily Bilge Water Separator: | ALFA NAVAL | |
| Dirty Oil Pump: | YES | |
| Lubrication Oil Pump: | YES | |
| Firefighting & Bilge System | ||
| Firefighting & Bilge Pump: | 380 / 24v Bilge + Fire | |
| Fresh Water System | ||
| Fresh Water Makers: | SEA RECOVERY AQUA WHESPER 220 l/h | |
| Fresh Water Treatment: | Decommissioned | |
| Fresh Water Pressure: | GIANNESCHI | |
| Hot & Cold Circulation Pump: | GIANNESCHI | |
| Hot Water Boilers: | GNR x 2 Tanks. Capacity 200 litres each | |
| Sea Water Pumps: | CALPEDA | |
| Black & Grey Water System | ||
| Black & Grey Water Treatment: | HAMMAN | |

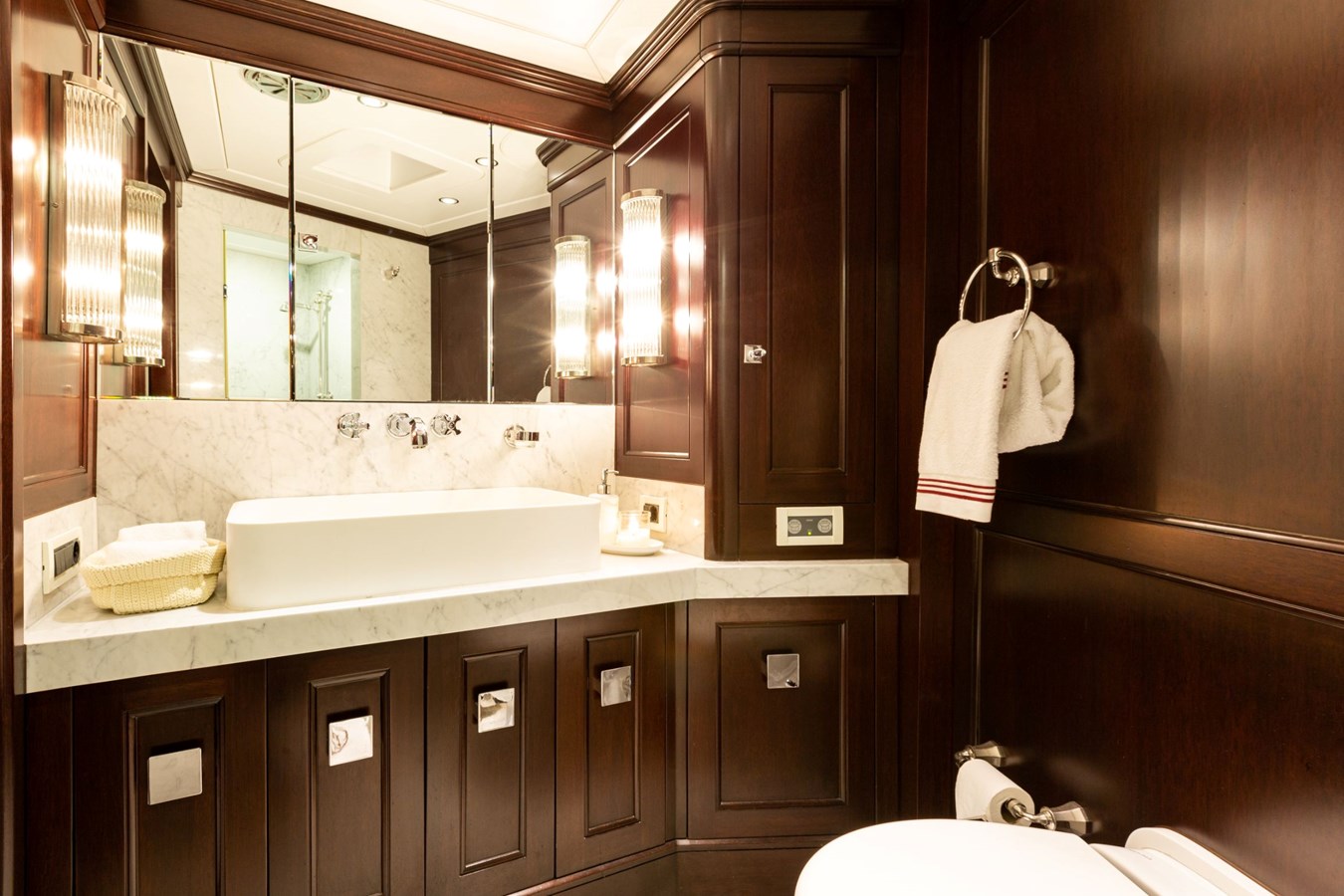

| WC's (toilets/bidets): | TECHMA | |
| Sanitary Water System: | HAMANN 700L | |
| Black & Grey Water Pumps: | GIANNESCHI | |
| Garbage Management System | ||
| Garbage Compactor: | Yes | |
| AC & Ventilation System | ||
| Air Conditioning: | CLIMMA | |
| Air Compressor: | KAHLENBERG | |
| Air Handling Units: | VEGA Mk2 | |
| Provision Refrigeration: | LIEBHERR | |
| Engine Room AC: | MARINECOLD | |
| Engine Room Ventilation: | Yes | |
| Galley Ventilation & Extraction: | Yes | |
| Hydraulic System | ||
| Hydraulic Power Packs: | SEAWAY | |
| Antifouling System | ||
| Type: | CATHELCO | |

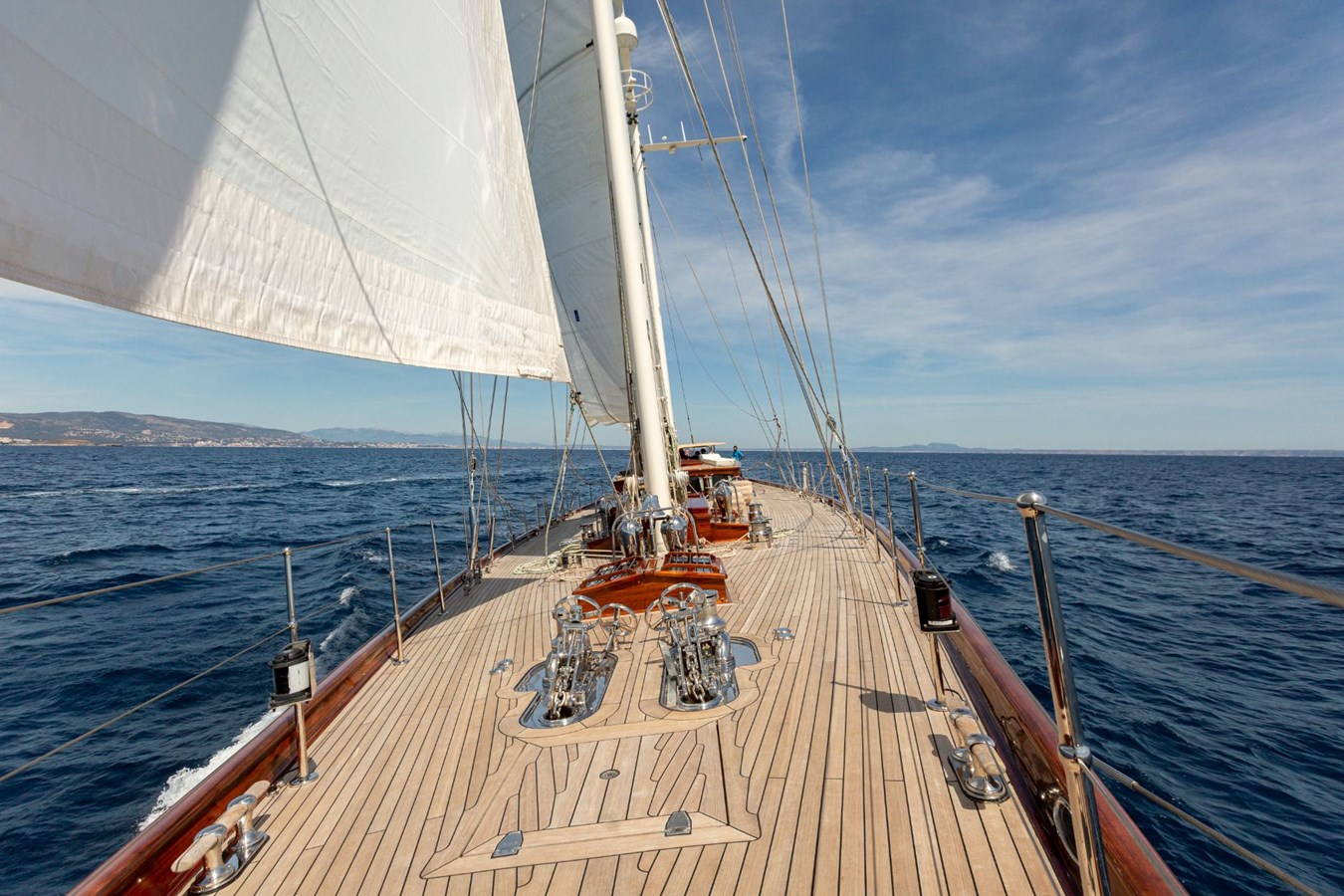

SAILS & RIGGING
| Masts: | 2 | |
| Type of masts: | Formula Yacht Spars Aluminium | |
| Booms: | Formula Yacht Spars Aluminium | |
| Standing rigging/Running rigging: | Nitronic Rod Rigging / 2022 new DSK99 sleeved running rigging | |
| Reefing | Slab | |
| Sails: | ZAOLI (New May 2022) | |
| Furlers | HARKEN Hydraulic | |

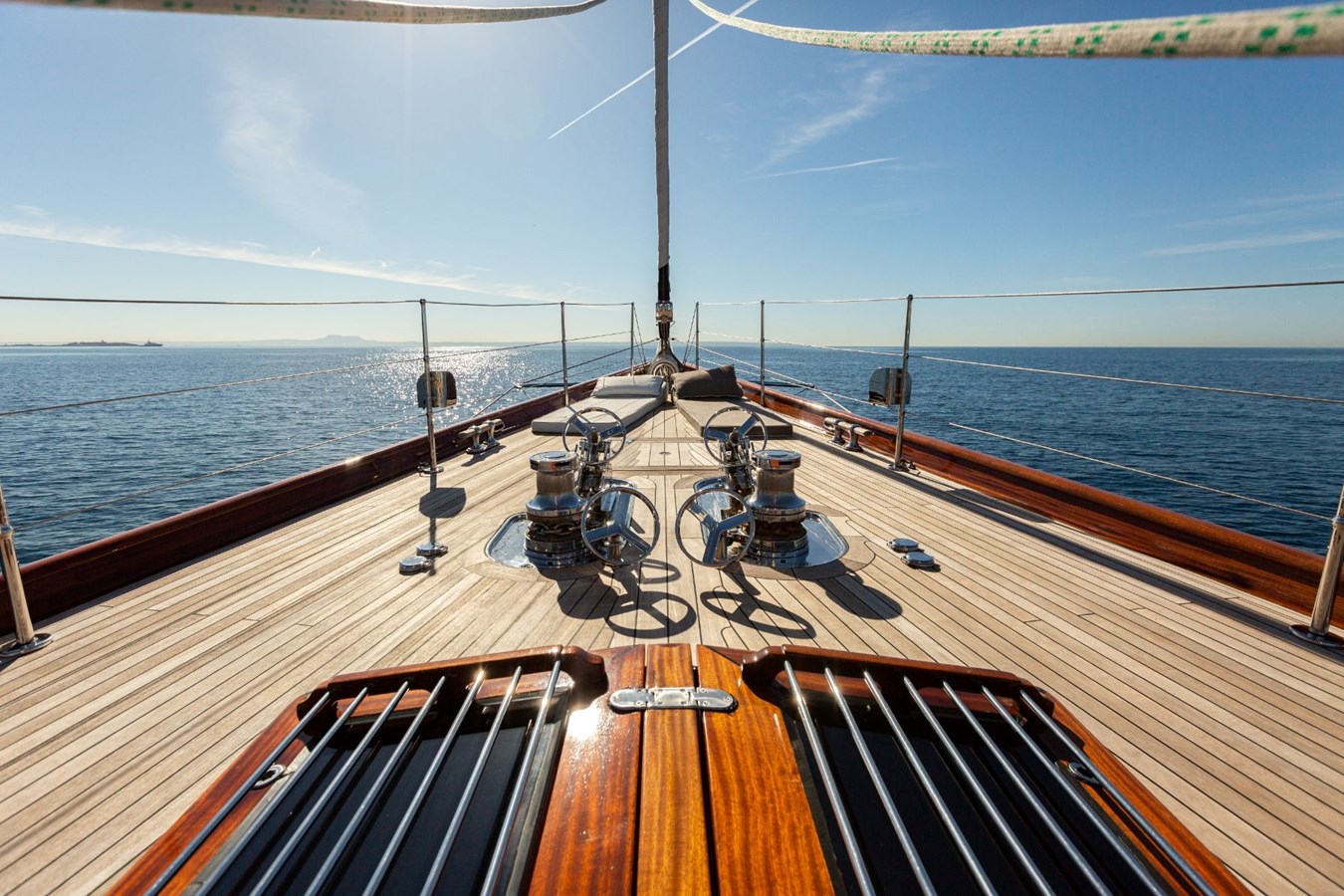

| Winches: | HARKEN Hydraulic | |
| NAVIGATION & COMMUNICATION SYSTEMS | ||
| NAVIGATION SYSTEMS | ||
| Monitors: | HATTELAND | |
| X-Band Radar: | SIMRAD | |
| Chart Plotter: | SIMRAD OP40 | |
| UPS: | SHNEIDER | |
| Magnetic Compass: | SUUNTO | |
| Gyrocompass: | SIMRAD 4/5 | |
| Auto Pilot: | SIMRAD AP 25 | |
| Rudder Angle Indicator System: | SIOEN | |
| Echo Sounder: | B 24 M8000 | |
| Speed Log: | B 24 M8000 | |
| Depth Sounder: | AIRMAR | |
| DGPS: | SIMRAD | |
| GPS: | SIMRAD | |
| AIS: | SIMRAD | |
| BNWAS | Marble | |
| Wind Instruments: | B&G | |
| Horn: | AIR | |
| Search Lights: | 2 | |
| Bridge Navigation Watch Alarm: | Marble | |
| Ships Computer: | Ship’s PC wireless network 84 router | |
| COMMUNICATION SYSTEMS | ||
| SAT com: | SEATEL COASTAL 80/SAT C SAILOR 500 FLEET BOARDBAND | |
| INMARSAT – C: | SAILOR MINI SAT C Decommissioned | |
| VHF Radiotelephones: | SIMRAD RS87 DSC | |
| Portable VHF: | ICOM | |
| Portable GMDSS VHF: | SIMRAD | |
| VHF/UHF Digital Radios: | ICOM | |
| Radar Transponders: | SIMRAD | |
| Navtex Receiver: | FURUNO | |
| GMDSS Battery Plant: | Yes | |
| DECK MACHINERY & EQUIPMENT | ||
| Anchors: | 2 SS Custom Made | |
| Anchor Windlass System: | MAXWELL 6000 WINDLASS X 2 19MM | |

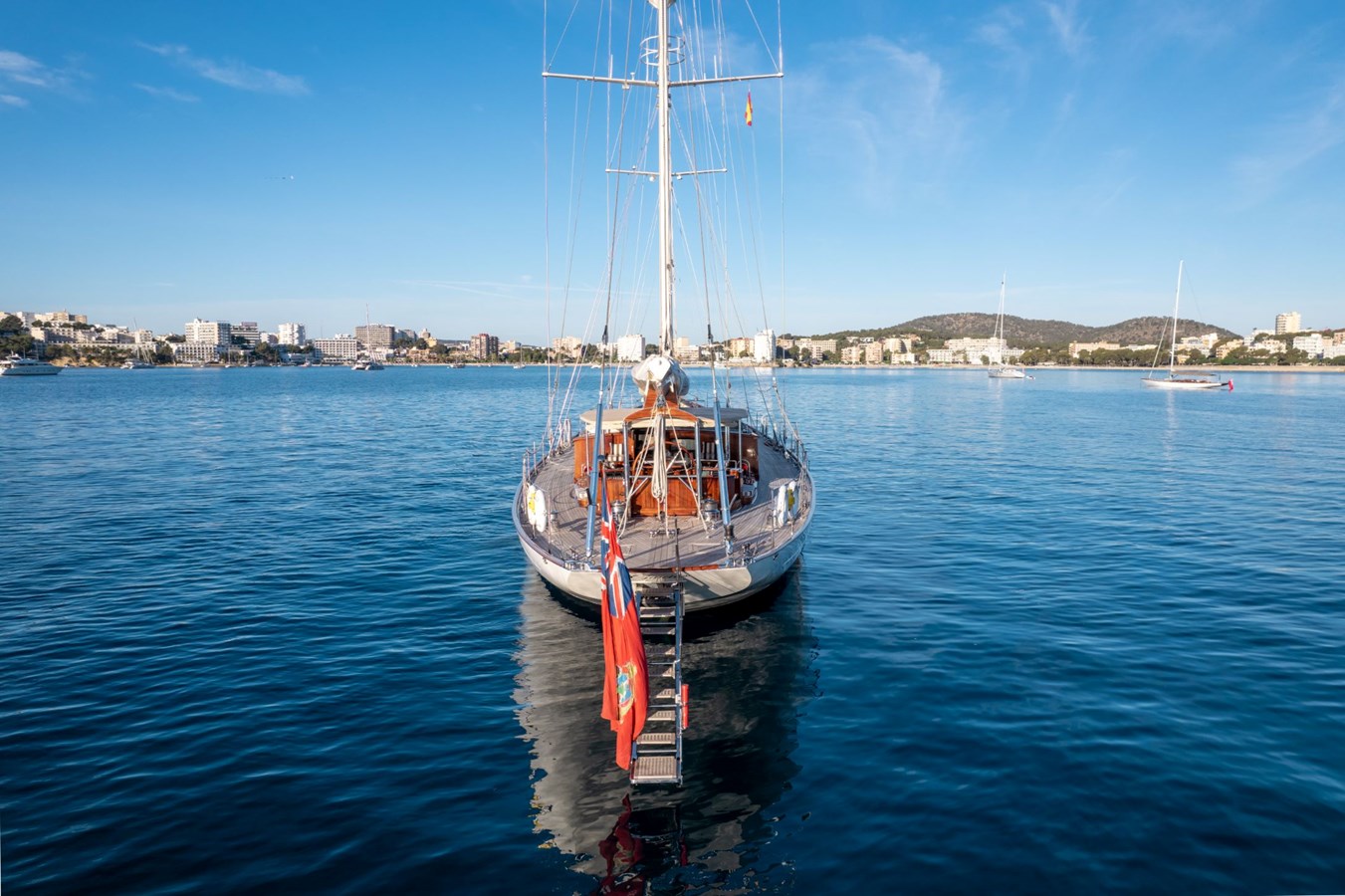

| Passerelle: | Hydraulic stainless steel by EZBERCI MARINE | |
| Side Boarding Ladder: | Stbd side hydraulic ladder by EZBERCI MARINE | |
| Swimming Ladder: | Included in stern passerelle and sideboarding ladder | |
| Spotlights: | 2 | |
| Paint Exterior: | AWLGRIP | |
| Paint Interior: | AWL GRIP VARNISH | |
| Paint Underwater: | JOTUN | |
| SAFETY, SECURITY, & FIRE FIGHTING EQUIPMENT | ||
| Safety Equipment | Full MCA commercially compliant inventory | |
| CCTV: | Decommissioned | |
| Monitors: | Decommissioned | |
| Motion Sensors: | 1 | |
| Ship’s Safe: | 1 | |
| Doorbell/stew bell: | 1+1 | |
| Fixed Firefighting System: | FM 200 ENGINE ROOM | |
| Firefighting Equipment: | Emergency Crash pump diesel Gianeschi 24V pump Gianeschi 380V | |
| Gas Detection: | Yes | |
| Smoke Detection: | Yes | |
| Fire Alarm: | TYCO MINERVA T2000 | |
| Alarms: | Yes | |
| MOB Boat: | Yes | |
| Life Rafts: | 4 | |
| Breathing Apparatus: | As per flag state requirement | |
| Lifejackets: | As per flag state requirement | |
| Immersion Suits: | As per flag state requirement | |
| Life Rings: | As per flag state requirement | |
| EPIRB: | As per flag state requirement | |
| SART: | As per flag state requirement | |
| Flares and Signals: | As per flag state requirement | |
| Medical Equipment: | As per flag state requirement | |
| ENTERTAINMENT, AUDIO/VISUAL AND IT SYSTEMS | ||
| TV: | Sony | |
| Audio Equipment: | Bose | |
| Light Management: | Traditional | |
| Main Salon: | TV + Audio | |
| Master Stateroom: | TV + Audio | |
| VIP Stateroom: | TV + Audio | |
| Guest Staterooms: | TV + Audio | |
| Exterior, Aft Deck, Wheelhouse: | Audio | |
| Captain’s Cabin: | TV | |
| Crew Mess: | TV | |
| WIFI: | 4G/5G | |
| GALLEY & LauNDRY EQUIPMENT | ||

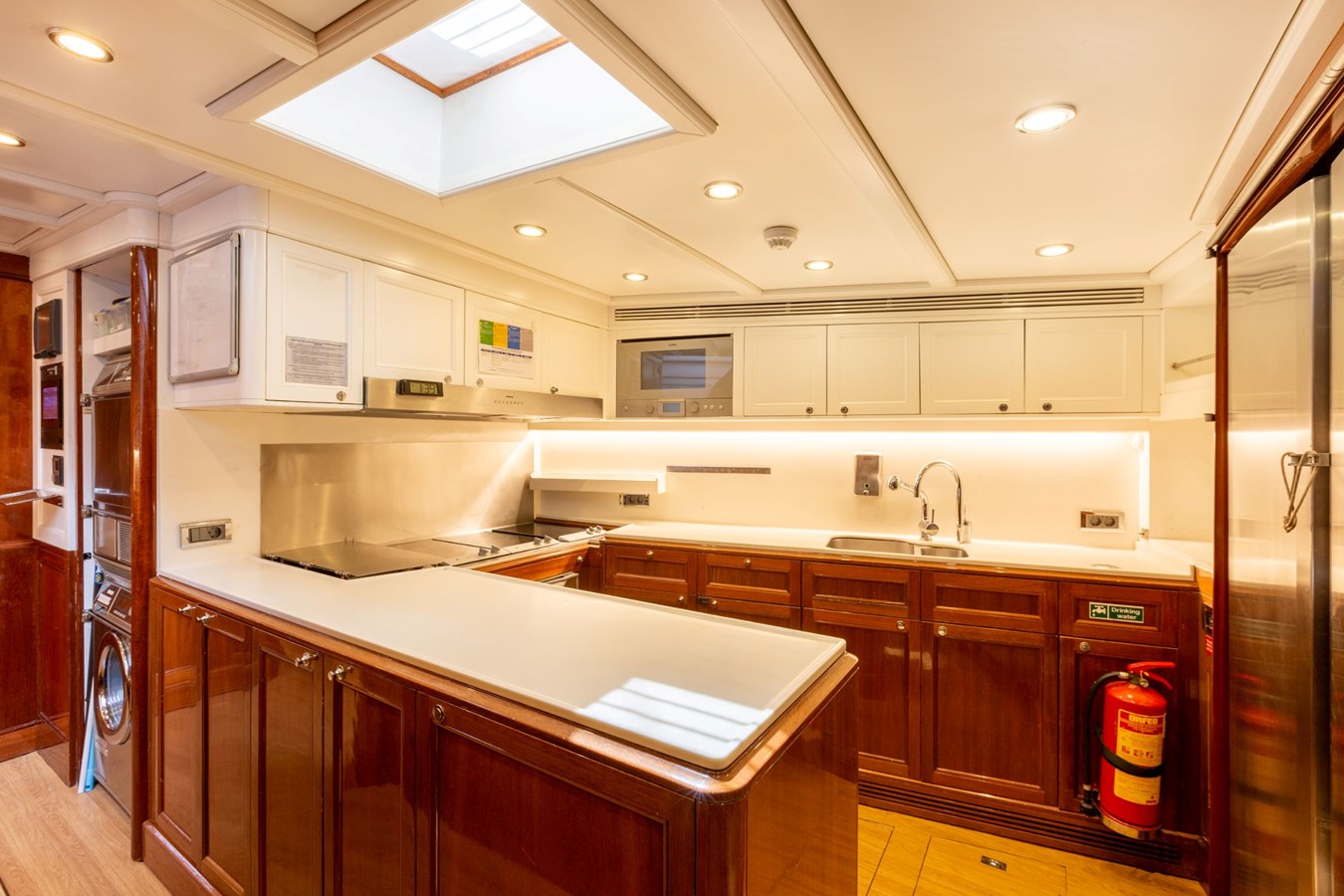

| MAIN GALLEY EQUIPMENT | ||
| Cooking Equipment: | GAGGENEAU Induction cooker + BBQ Grill/Oil frier option | |
| Coffee Machine | Nespresso capsules + American filter | |
| Refrigeration/Freezer: | 2 x LIEBEHR | |
| Microwave / Oven | GAGGENEAU | |
| Dishwasher: | MIELE professional | |
| Dryer: | MIELE professional | |
| PANTRIES AND OTHERS | ||
| Refrigeration/Freezer: | 1 x fridge + 1 x freezer LIEBHERR | |
| Other: | Red and White Fridge VINIDOR + icemaker | |
| CREW GALLEY / MESS EQUIPMENT / COOKING EQUIPMENT | ||
| Microwave: | GAGGENAU | |
| Refrigeration/Freezer: | 2 x fridges+ 1 x freezer Liebherr | |
| Dishwasher: | MIELE professional | |
| Main Laundry Equipment: | MIELE WASHER AND DRYER | |
| Crew Laundry Equipment: | MIELE WASHER AND DRYER | |
| TENDERS & TOYS | ||
| Tenders: | CASTOLDI 18’ / 115 Hp YANMAR engine | |
| REFIT 2021-2022 | ||
