2020
Year
CHRISTENSEN
Builder
164' (49.99m)
Length
6
Cabins

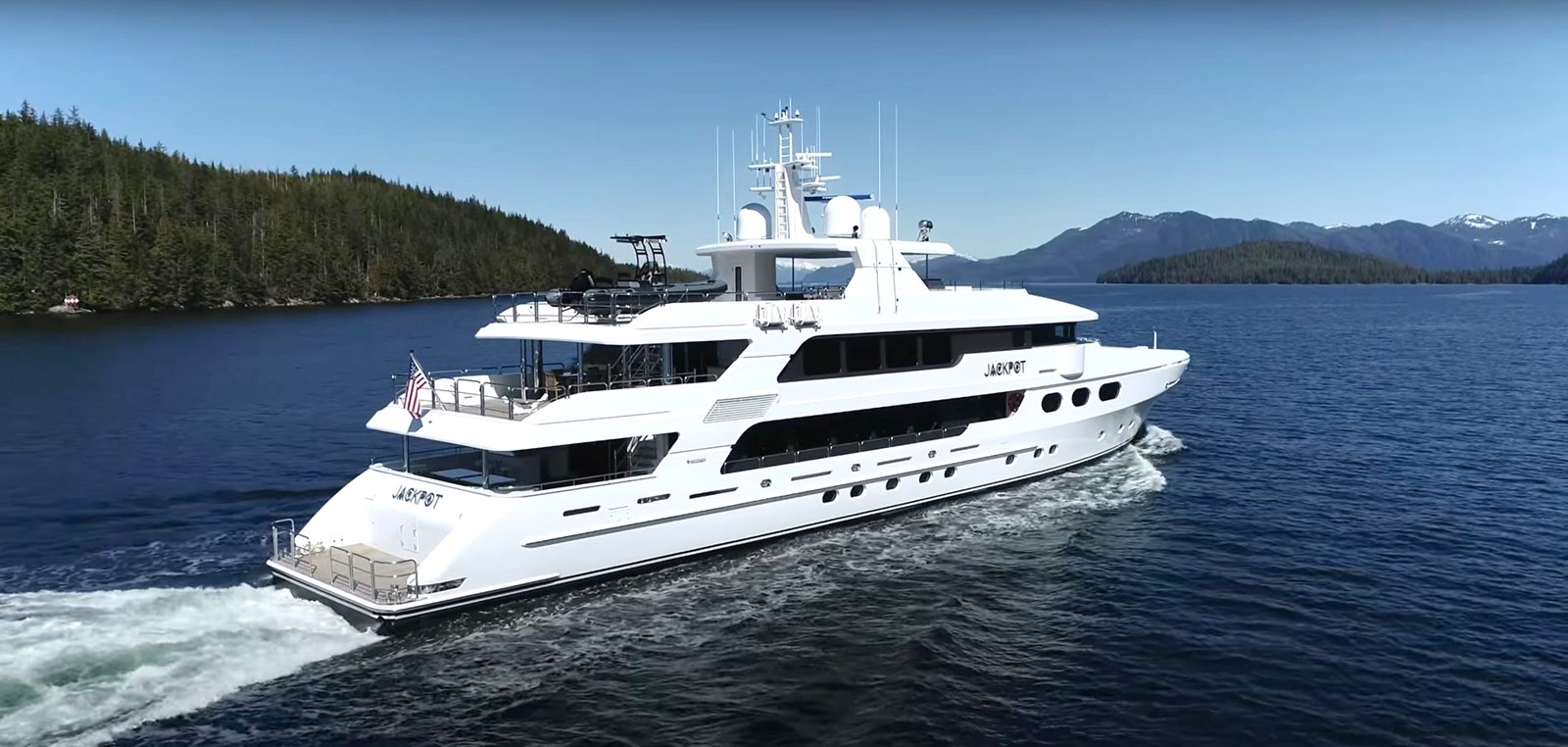

JACKPOT 2020 164' CHRISTENSEN Motor Yacht

N/A United States $39,500,000 USD

The 2020 164' CHRISTENSEN Motor Yacht JACKPOT is a yacht for sale located in N/A, Alaska, United States.

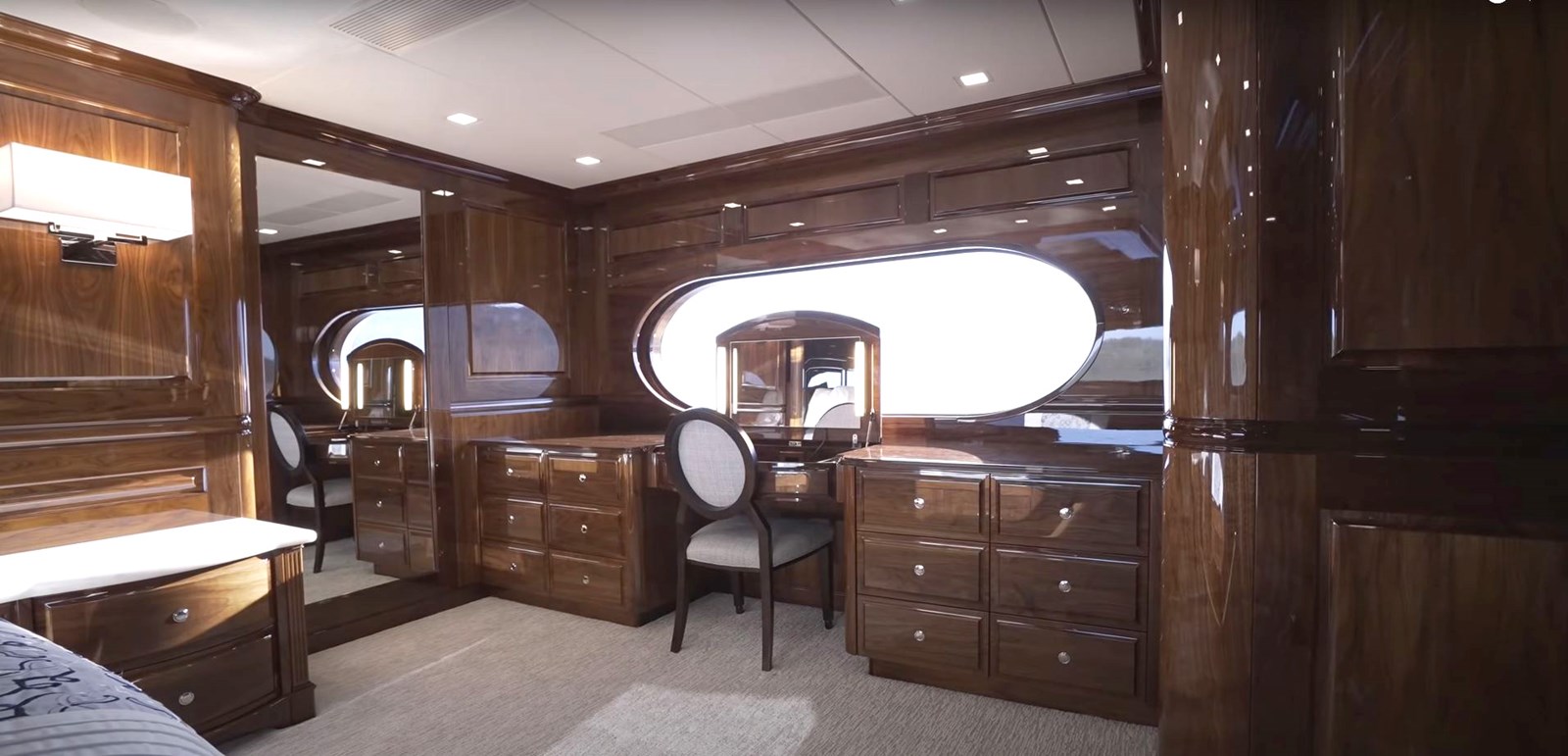

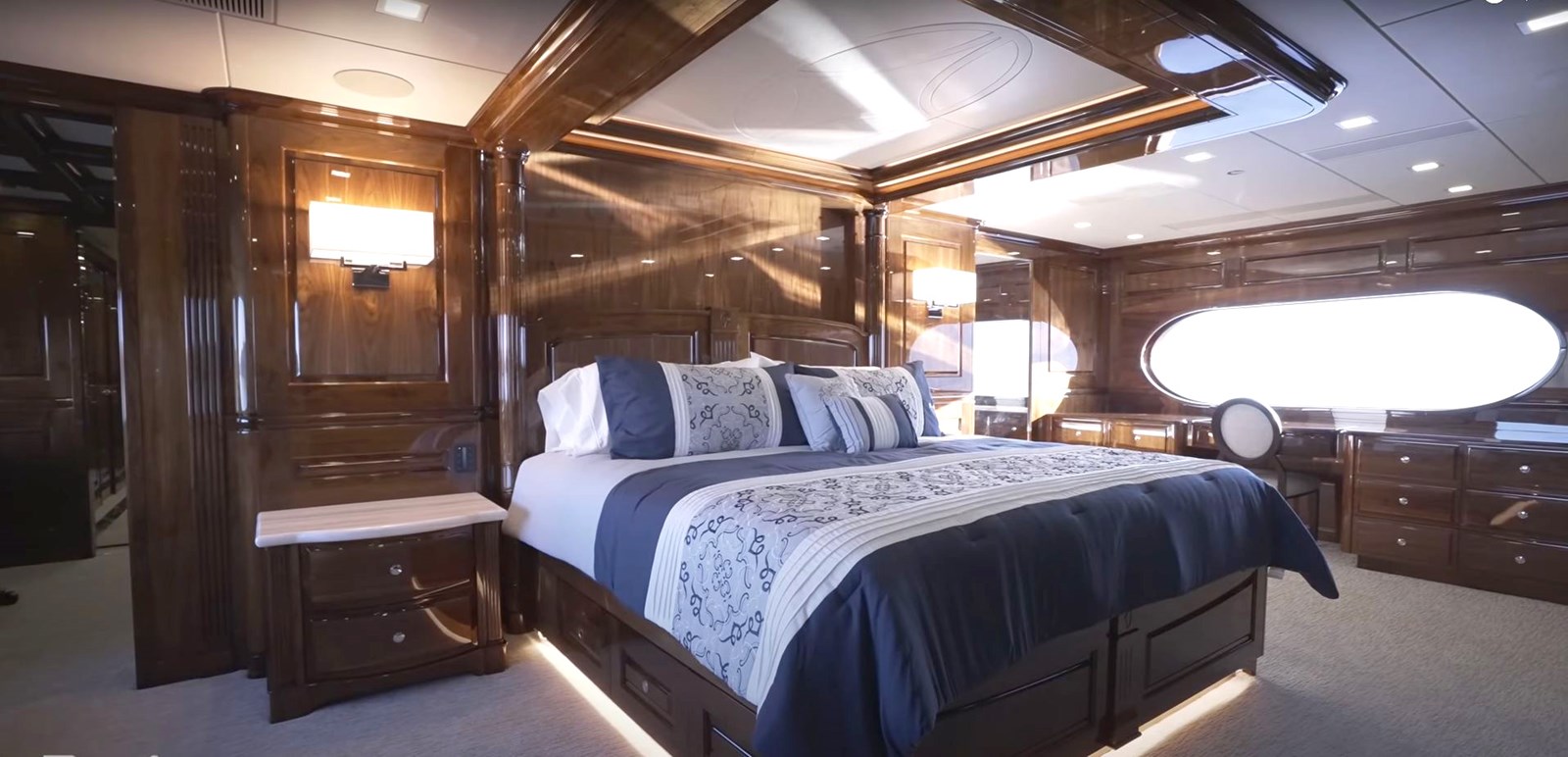

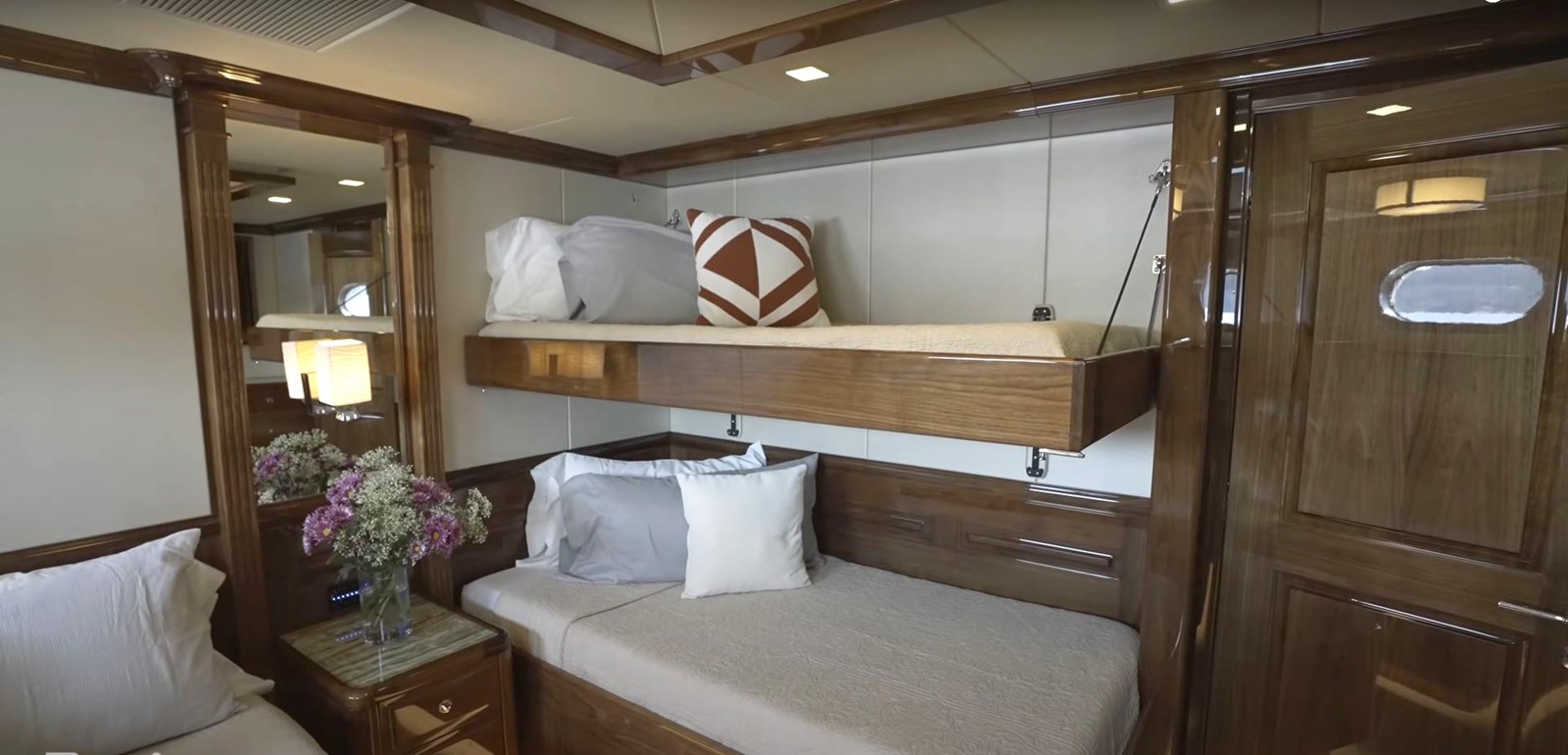

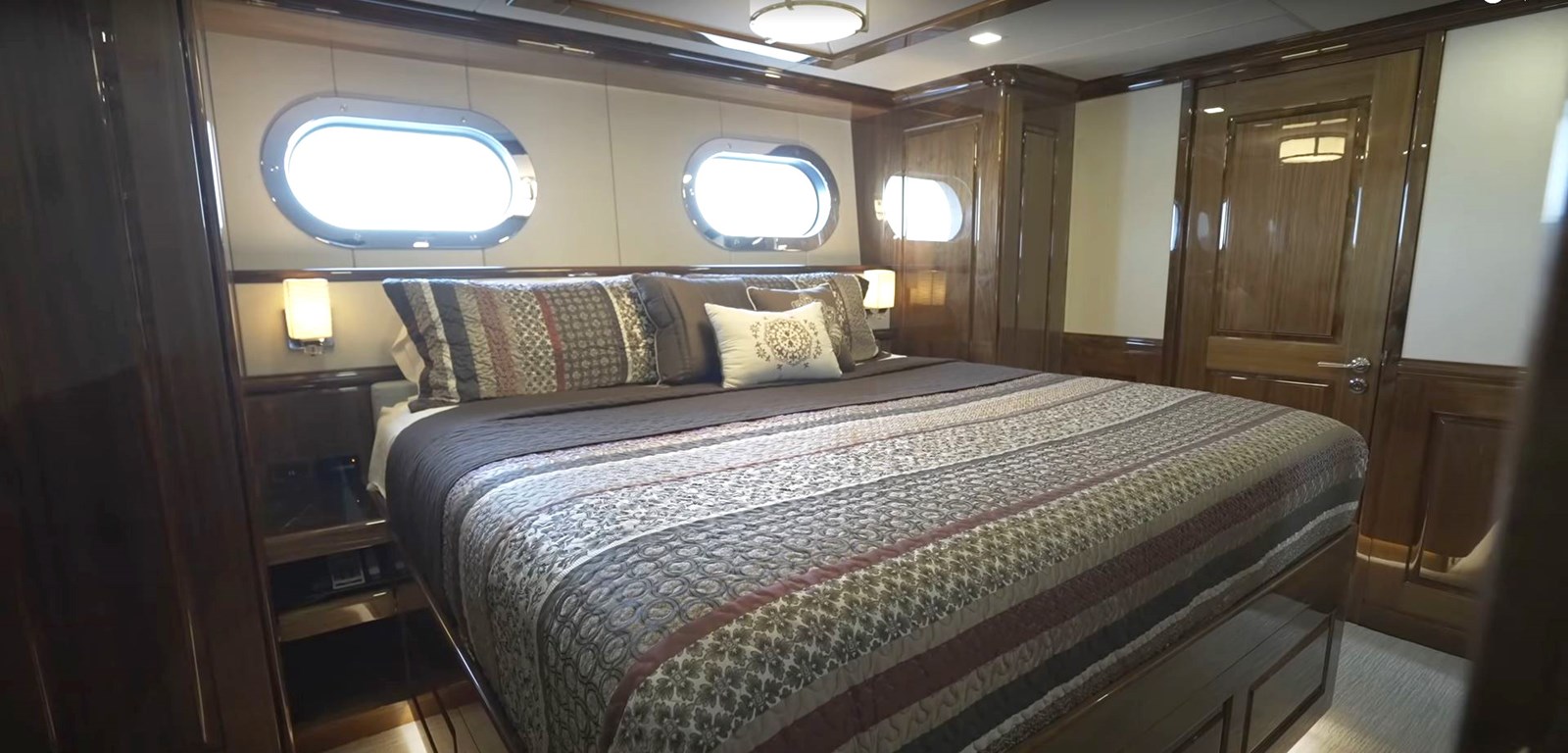

This large-volume yacht features Christensen’s latest design and engineering unmatched by her predecessors. Her custom interior features accommodations for up to 16 guests in 6 staterooms with a voluminous master suite located on the main deck, complemented by a full-width VIP suite, and 4 equally impressive guest staterooms on the lower deck.

  • World-class pedigree, fiberglass motor yacht with available delivery in the next 90 days!
  • Fresh new wide-body design with classic interior
  • Accommodations for up to 16 guests in 6 staterooms incl. on-deck master suite and full-width VIP on the lower deck
  • Guest elevator provides unlimited access to all decks including the sun deck
  • Dayhead on sun deck
  • Helipad complete with fuel storage on sun deck
  • Emergency generator
  • Bulbous bow
  • MTU 12V4000 series main engines provide 14-knot cruising speed, and global cruising capabilities
  • ABS classification


Contact the yacht broker to receive more information or schedule a showing of this 2020 164' CHRISTENSEN Motor Yacht JACKPOT yacht for sale in N/A, Alaska, USA today!
Get more information on this listing
Merle Wood Merle Wood & Associates, Inc.
Call Email
John Cohen Merle Wood & Associates, Inc.
Call Email
LENGTH 164' (49.99m)
BUILDER CHRISTENSEN
ASKING PRICE $39,500,000 USD
BUILT 2020
BEAM 29' (8.84m)
DRAFT 7' 3" (2.21m)
MAX SPEED 16 Knots
CRUISING SPEED 14 Knots
CABINS 6
GROSS TONNAGE 570.00
DISPLACEMENT 965000 Lbs
LOCATION N/A, Alaska, USA
Get more information on this listing
Merle Wood
Merle Wood & Associates, Inc.
Call Email
John Cohen
Merle Wood & Associates, Inc.
Call Email

Full Specifications

Additional specifications are available for this listing. Click below to get detailed information.


CONSTRUCTION

Fiberglass hull and superstructure (Vacuum infused FRP-foam core sandwich composite), with teak decks

DIMENSIONS

General
Length Overall:164.00 feet(49.90 meters)
Length at Waterline:149.75 feet(45.60 meters)
Beam (molded):29.00 feet(8.80 meters)
Draft (loaded):8.00 feet(2.40 meters)
Tonnage:570 gross tons
Capacities
Fuel Capacity:15,300 US Gallons(57,916 liters)
Water Capacity:3,600 US Gallons(13,626 liters)
Watermakers:4,800 US Gallons(18,169 liters) per day
Lube Oil:300 US Gallons(1,136 liters)
Waste Oil:300 US Gallons(1,136 liters)
Speed
Maximum:16.5 knots
Cruising:14.0 knots

MACHINERY

Main Engines
Engine Type:(2) MTU12V4000 M53, 1810 HP @ 1800 RPM
Continuous Duty rating, with pre-lube & coolant pre-heat systems.
Gearboxes for Main Engines:(2) ZF Model 4650A, 8º down-angle, 3.04:1 ratio with trailing pumps, trolling valves.
Drive:(2) VEEM - 5 Blades, NiBrAI, CNC machining
Generators & Electricity
Output:208 Volts, 3 phase, 60Hz
Generators:
  • (2) Kohler 99 KW, 208V – 3PH – 60Hz.
  • (1) Kohler 65 KW, 208V – 3PH – 60Hz.
Shore Power:
  • Hyak Electroworks - Integrated shore power & conversion system with full auto-paralleling Control system. Converts any input voltage & frequency from shore power
Batteries:
  • (2) 24 VDC Battery Banks with battery chargers
Air Conditioning
Type:
  • Christensen chilled water HVAC system, with 40-ton chiller with 45-kW electric heater & network interface
Other Machinery
Watermakers:
  • (2) FCI Atlas+ APC, 2400-GPD
Trim Tabs/Stabilizers:
  • Quantum QC-1800, with two (2) custom Stainless Steel high-lift, 4.5 m2 fins
Bow Thruster:
  • ABT TRAC-24” dual-prop tunnel thruster, with 86-KW AC electric motor
Steering System:
  • (2) Jastram electro-hydraulic power packs with emergency manual help pumps
Fuel Separator & Filtration:
  • (2) MTU Primary & Secondary filtration systems
  • (3) Racor model 804MA30 filters for gensets
  • (1) Fuel Filter/Water Separator, Henek Fluid System 30-GPM flow rate
Sewage System:
  • Tecnicomar, model “ECOmar 16”, IMO MEPC-159(55) Certified
Bilge Water System:
  • Recovered Energy Inc., model BOSS2TY-107 USCG Certified, ABS Type-Approved & IMO MEPC-07(49) compliant
Fresh Water Filtration:
  • Carbon Filtration system with Ozone Sterilizer and UV sterilizer

  • FCI DTS+ SOLO water treatment dock side

GALLEY & LAUNDRY EQUIPMENT

Main Galley Equipment
Cooking Equipment:
  • (2) 4-Burner Professional Cooktop
  • (1) Extraction hood with independent fixed fire extinguisher system
  • (2) Convection Ovens
  • (1) Microwave Oven
  • (1) Glo-Ray infrared food warmer
  • (2) Warming drawers
Refrigeration/Freezer:
  • (1) Sub-Zero Refrigerators/Freezers
  • (1) Sub-Zero Ice Maker
  • (1) Manitowoc Ice maker in Pantry
Dishwasher:
  • (2) Miele model
Trash compactor:
  • (2) KitchenAid model
Crew Galley/Mess Equipment
Cooking Equipment:
  • (1) Microwave
  • (1) 4-Burner electric cooktop
Refrigeration/Freezer:
  • (1) Walk-In Cooler/Freezer with (2) Condensing Units
  • (1) Upright Refrigerator / Freezer
Dishwasher:
  • (1) GE model GSD6900JWW
Trash Compactor:
  • KitchenAid model KUCS30CTWH
Laundry Equipment
Main Laundry Equipment
  • (3) Commercial Washers
  • (3) Commercial Dryers

COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS

Communication Systems
SATcom:
  • Sailor 100
Telephone System:
  • Panasonic with 24 extension ports for wired & wireless extensions with intercom & paging
VHF:
  • (3) Garmin 300 VHF
Cellular Phone System:
  • (2) Telular SX5E GSM Cellular Phone
Loud Hailer:
  • (1) Garmin

Network Access:

  • Great Circle System NAS 3000 automatically searches all network sources for the most cost effective route for internet traffic
Wireless Network:
  • Cisco 802.11g wireless network covering all decks
Navigation Systems
Vendor:
  • Garmin
Monitors:
  • (7) 24” Hattland monitors
Radar:
  • (1) Furuno FAR2137BB, 30-KW, S-Band
  • (1) Garmin 2526 X-Band, Garmin Fantom 6
  • (1) Garmin GMR Fantom 6
Magnetic Compass:
  • (1) Richie SY-600LL Super Yacht Compass
Auto Pilot:
  • (2) GHP Reactor
Sonar/Sounder:
  • (1) Garmin GSD 25 Advanced Sonar
  • (1) Garmin GSD 26 CHIRP Sonar
  • (2) Garmin GPSMAP 942 with charts
GPS:
  • (4) Garmin GPSMAP 8616 with BlueCart G3 coastal and LakeVu G3 inland maps
Night Vision Camera:
  • (1) FLIR Thermo Voyager
Entertainment System:
Audio/Video Equipment
  • (2) SeaTel 100TVHD Sat TV antennas; Functional control of the entire A/V system is through touch panels located in every room. Each room has autonomous control of the DVD movie library and the CD music library, as well as U.S., Caribbean, and European satellite television. All receiver equipment is located in a central A/V room and networked throughout the yacht.
Monitoring System
  • Hyak Electroworks The programmable logic based system, with (6) 12” color touch-screens installed throughout. A SIMnet integration and monitoring network connects the vessel’s system to allow remote monitoring, data logging, power management and diagnostic.

DECK EQUIPMENT

Anchor Windlass System:
  • (2) Maxwell SY-26 windlasses, 15KW electric
Aft Warping Capstans:
  • (6) Maxwell VC-6000 Electric
Anchors:
  • (2) 360KG “Pool N” type, balanced, electro-polished stainless steel
Anchor Chain:
  • (2) 600 feet of 22mm grade-2 stud-link
Boat Crane and Davits:
  • (1) 5000 lbs (2267 kg) capacity – main crane
  • (1) 1200 lbs (544.3 kg) capacity – bow davit
Passerelle:
  • (1) 20’ (6 meter) hydraulic telescoping extension with swivel platform

SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT

Security Equipment
CCTV System:
  • Networked through the A/V control system
Cameras:
  • (10) Sony Network Color Camera with pan-tilt-zoom
Monitors:
  • Cameras can be called up on any TV or monitor onboard via the Creston switching system
Fire Fighting Equipment
Fire Control System:
  • Novenco XFlow water mist system in all Living spaces FM-200 fixed fire Extinguishing System in the Engine Room and Generator Room
Fire Extinguishers:
  • Provided throughout as required by ABS
Alarms:
  • Consilium Salwico CS4000, with smoke, heat and Flame detectors where necessary
Safety Equipment
Life Rafts:
  • (4) Zodiac 16 person USCG and SOLAS approved
Life Rings:
  • (4) SOLAS approved
EPIRBS:
  • ACR 2742 (CAT 1 with GPS)
Flares:
  • Per MCA requirements
